Pico Kart on an RP2040

Project Introduction

For our final project, we created our own Mario Kart–inspired racing game using the RP2040. To bring it to life, we 3D printed a steering wheel, used foot pedals connected to potentiometers for analog control, and animated everything using VGA graphics. We can use foot pedals to accelerate or break. Watch out though, if you don't step on the acclerator for a while then your speed will go down automatically. Like the original, our version features power ups, but with a Cornell twist. Hit the iconic clock tower bell to activate a speed boost. Drive through Martha’s weather machine (a pumpkin) to change the time of day. Want invincibility? Grab our dragon, power up. But watch out: just like in Mario Kart, we’ve got obstacles too. Cows, bears, and bananas will drop your velocity to zero and push you back. Survive 3 laps of chaos and you're crowned champion!

We chose this project because Mario Kart was a shared childhood memory, one full of laughter, chaos, and shouting at friends. We wanted to recreate that joy from scratch on the RP2040 microcontroller. By combining physical controls, real-time rendering, sound, and a touch of Cornell-themed humor, we aimed to build an immersive, nostalgic experience that feels both familiar and uniquely ours!

Also fun fact: we chose a dragon because of Cornell's Dragon Day.

High-Level Design

Inspiration & Rationale

We first drew our inspiration from the game Mario Kart. To look for further inspiration and sources, we decided to see previous projects to see if anyone has done something similar. We saw a previous project and were very inspired by it as it contained a lot of components that we wanted. We used it as an outline of what we wanted and how to get there. Inspired by these things, our objective was to create an embedded experience that feels arcade-quality using only a microcontroller.

Drawing the Mario Kart game and racing games in general, we wanted to accelerate, brake, and steer. These are just handy components that any racing games need. Drawing specifically from Mario Kart we wanted 2 things: powerups and obstacles. For our powerups we thought of the iconic ones in Mario Kart: speed boost and invincibility. As for obstacles we had more freedom and wanted to make some of them cornell specific. For example, we wanted a bear to represent our Big Red Bear!

Background Math – Collision detection

The collision detection system checks whether the player's kart intersects with any active obstacles or power ups on the road. This is achieved using axis-aligned bounding box (AABB) collision logic.

Mathematical Description

Let the kart's bounding box be defined as:

• Left: x_k
• Right: x_k + w_k
• Top: y_k
• Bottom: y_k + h_k

Where x_k is the karts top left x-coordinate, y_k is the karts top left y-coordinate, w_k is the width of the kart, and h_k is the height of the kart

Let the obstacle’s bounding box be defined as:

• Left: x_o
• Right: x_o + w_o
• Top: y_o
• Bottom: y_o + h_o

These are similar variables as the kart

A collision occurs if and only if both of the following are true:

x_k + w_k ≥ x_o      AND      x_k ≤ x_o + w_o     (horizontal overlap)
y_k + h_k ≥ y_o      AND      y_k ≤ y_o + h_o     (vertical overlap)

This is implemented as:

bool x_overlap = !(kart_right < obj_left || kart_left > obj_right);
bool y_overlap = !(kart_bottom < obj_top || kart_top > obj_bottom);
return x_overlap && y_overlap && !racer.invincible;

Design Considerations

• The bounding boxes are dynamically scaled based on perspective (objects further away are smaller).
• Collisions are only registered when obstacles are within a certain vertical range (e.g., below y=350) to avoid premature detection.
• Power ups and obstacles are handled separately—colliding with power ups applies effects, while hitting obstacles penalizes the player.
• Objects are deactivated once a collision is detected to avoid multiple triggers per frame. It is reactivated after it bounces backwards.

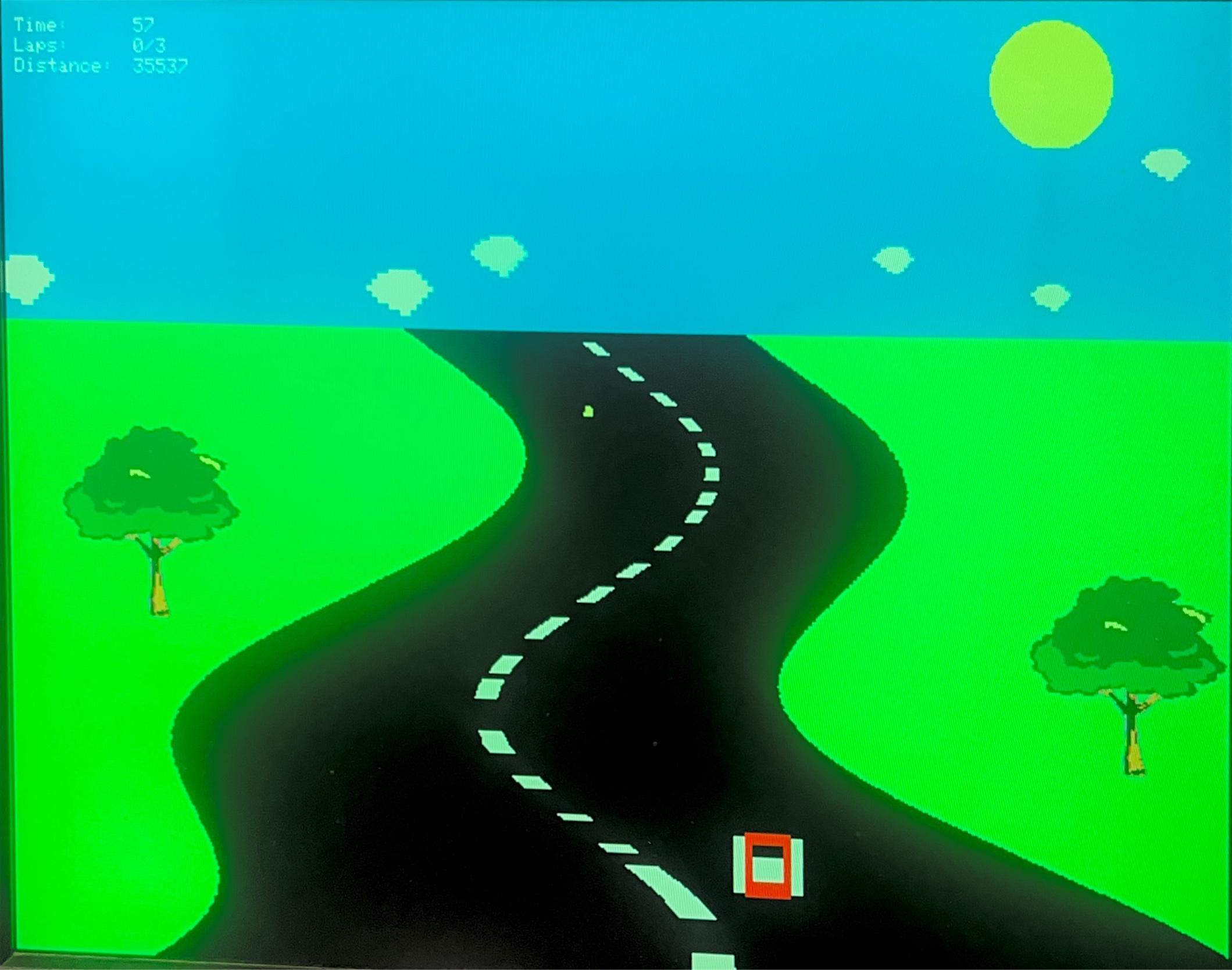

Background Math – Road Curvature

To simulate the effect of a dynamically curving road in real time, we use a sine wave based function that determines the horizontal shift of the road at each vertical screen line. For any scanline y, the curve offset is computed as:

curve = amplitude * sinf(curve_phase + 2(PI) * (y + road_scroll) / CURVE_PERIOD);

The amplitude controls the strength of the curve, and curve_phase increases slightly every frame to give the illusion of road movement over time. This function is evaluated once per scanline and is responsible for generating left and right edge positions that define the road shape.

We also apply a perspective effect using a quadratic scaling function based on each line’s distance from the horizon. This gives the appearance of depth, with the road widening toward the bottom of the screen:

progression = (y - SKY_HEIGHT) / (VGA_HEIGHT - SKY_HEIGHT);
perspective_scale = min_scale + (1.0 - min_scale) * progression^2;
road_width = base_width * perspective_scale;

These calculations are used not only for rendering the road itself, but also to ensure that other elements in the scene such as power ups, obstacles, and even the kart stay visually locked to the road. For example, we use the same getRoadCurve() function in our obstacle logic to shift objects slightly in the direction of the curve as they move down the track. Similarly, the kart’s x-position is bounded within the computed road edges at its y-position, ensuring the player can only steer within the valid playable area regardless of how the road curves.

Over the course of a lap, the amplitude value changes to simulate different driving sections. From 10k–20k units of distance, the curve gradually increases for gentle turns; from 20k–30k, it reaches a tighter maximum; and after 50k, it begins to return to a flat road by decreasing the amplitude back to zero. This control over curvature progression allows us to design a lap with varied road conditions, all handled procedurally with minimal computation per frame.

Overall, the road curvature math forms the backbone of both the game’s visual style and its object interaction logic. It allows us to render smooth, animated road movement and ensures all gameplay elements are spatially consistent with the track.

Background Math – Scaling

To simulate a realistic 3D racing perspective on a 2D VGA display, we use a combination of perspective scaling and nonlinear progression-based transformations to draw the road and objects.

1. Perspective Scaling

Each horizontal scanline of the road uses a scaling factor based on how far down the screen (y-position) it is. The progression value is computed as:

progression = (y - SKY_HEIGHT) / (VGA_HEIGHT - SKY_HEIGHT)

This value lies in [0, 1] and gets squared to exaggerate the perspective:

perspective_scale = min_scale + (1 - min_scale) * (progression)^2

The result is a wider road near the bottom (closer to the player) and narrower at the horizon, imitating depth.

2. Road Width

The width of the road is dynamically scaled each frame:

road_width = base_road_width * perspective_scale

Dashes and center lines also use dash_length and dash_gap scaled by this factor to maintain consistency.

3. Object Scaling

Objects like power ups and obstacles are also scaled by a linear function of progression:

object_scale = 0.2 + progression * 2.0

This ensures distant objects appear smaller and grow larger as they approach the player, enhancing the 3D illusion.

Gameplay

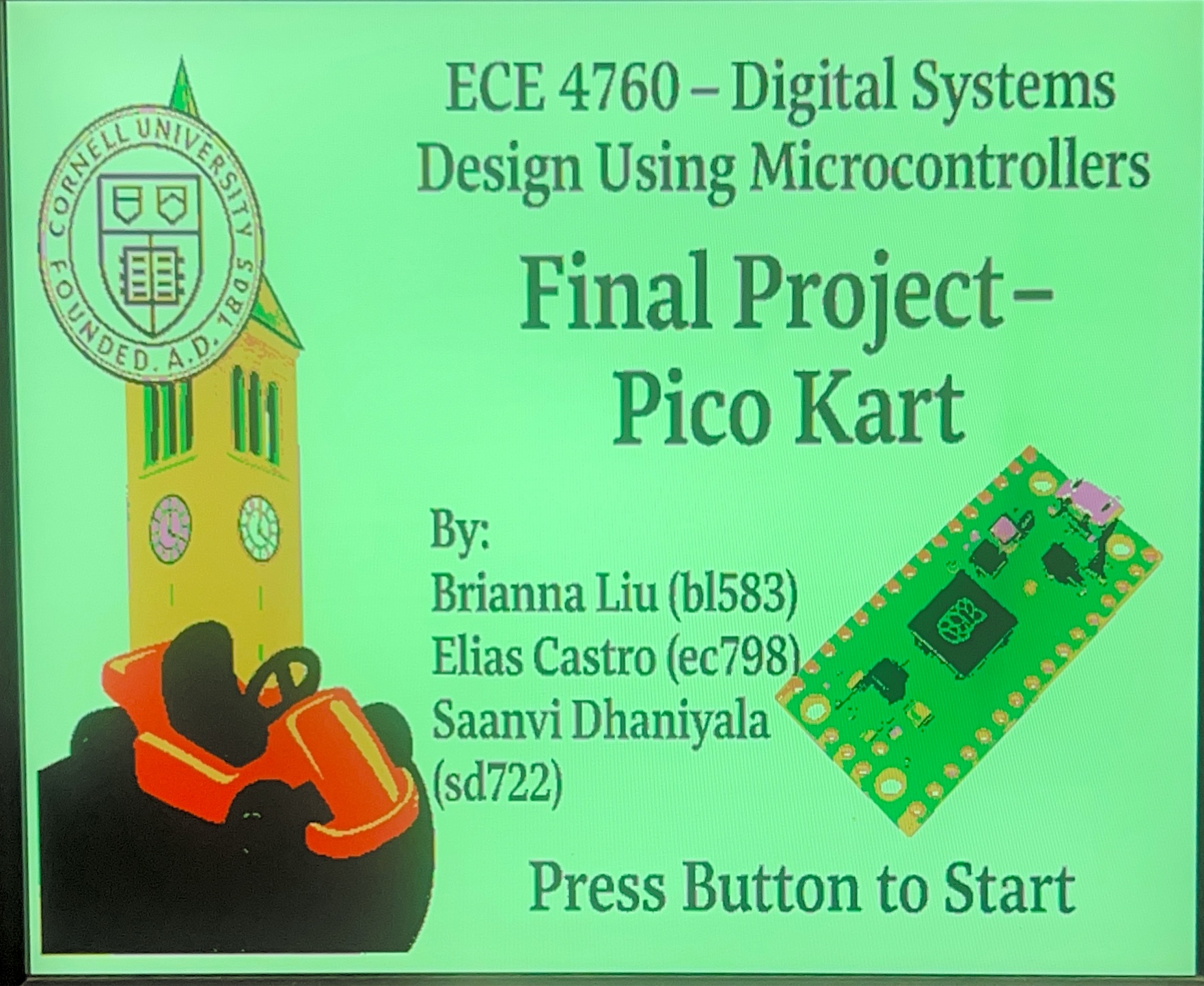

We first start off our system by having our start screen. We included this because it would feel unnatural if the player couldn't start the game at ease. It is also nice art to look at! During this time, the code is in a while loop that won't break until the button is pushed. This button is connected to the breadboard and is not on the Pico itself. To generate the image, we used an online python script.

Once the start button is pressed, the program launches core1_entry() using multicore_launch_core1(). This initializes core 1, which is responsible for all main gameplay threads. Specifically, it runs protothread_vga for rendering the road, kart, and game objects; protothread_stats for handling the HUD and pedal input; and protothread_background for managing environmental effects like clouds, road shaping, and obstacle spawning.

Meanwhile, core 0 handles just one thread: protothread_sfx, which is responsible for streaming audio samples to the DAC in real-time. This separation allows the audio system to run without interruption or frame stutter, while core 1 handles the more computationally demanding game logic and rendering.

We then start at the beginning of our lap and start our adventure! Note that a lap is 80k units. Everytime we update the distance we update it based off of the racer's current velocity. The reason why we have such large units is because the distance is being updated almost every frame! In figure 1, you see a cow approaching. Notice how it is small. This shows the effectiveness of our scale funciton.

Power ups & Obstacles

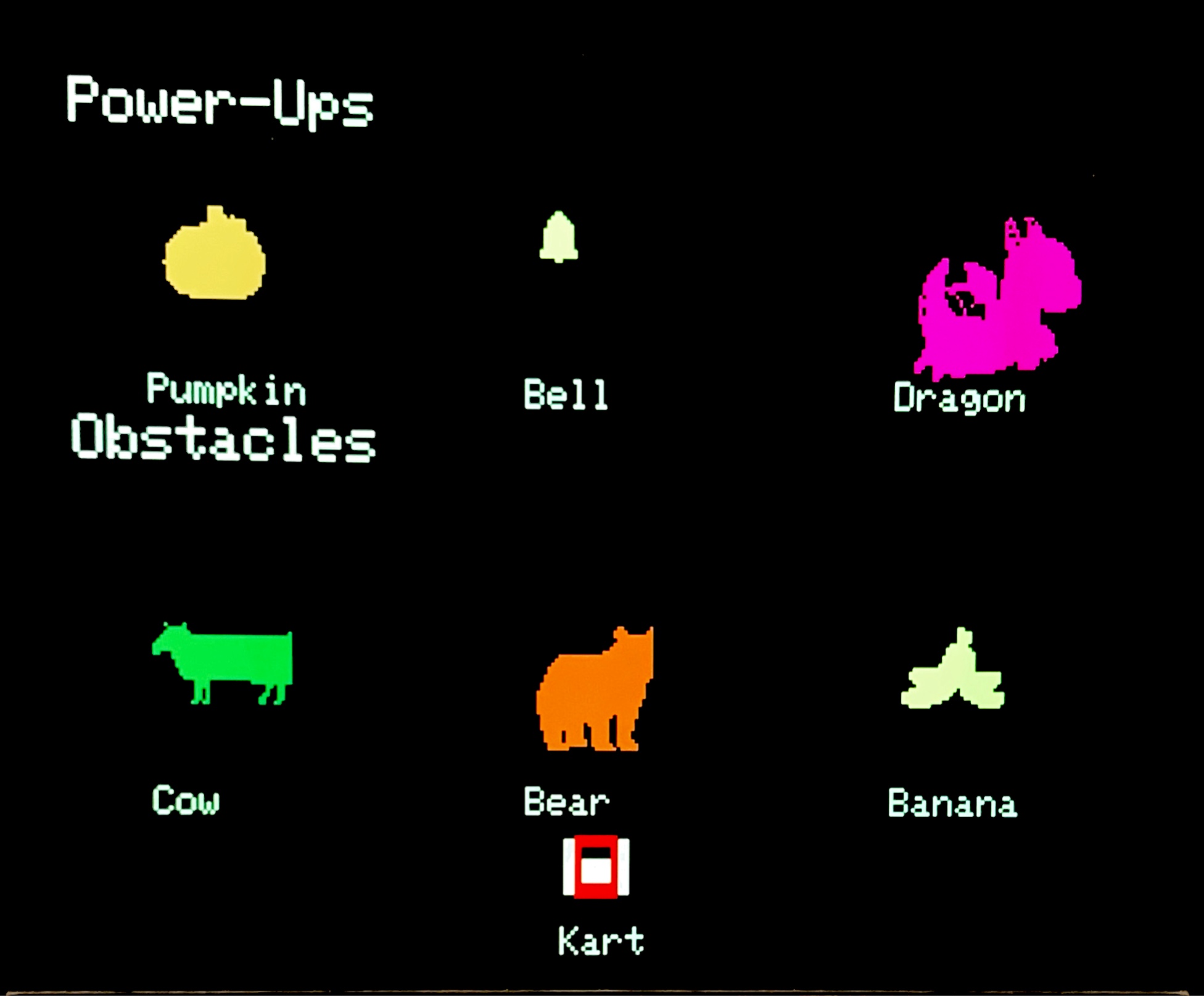

Speaking of objects, let us now move on to all the possible sprites that could be on the road and what they do. Throughout the course, the player can interact with both helpful power ups and dangerous obstacles. These elements add dynamic gameplay.

Power ups

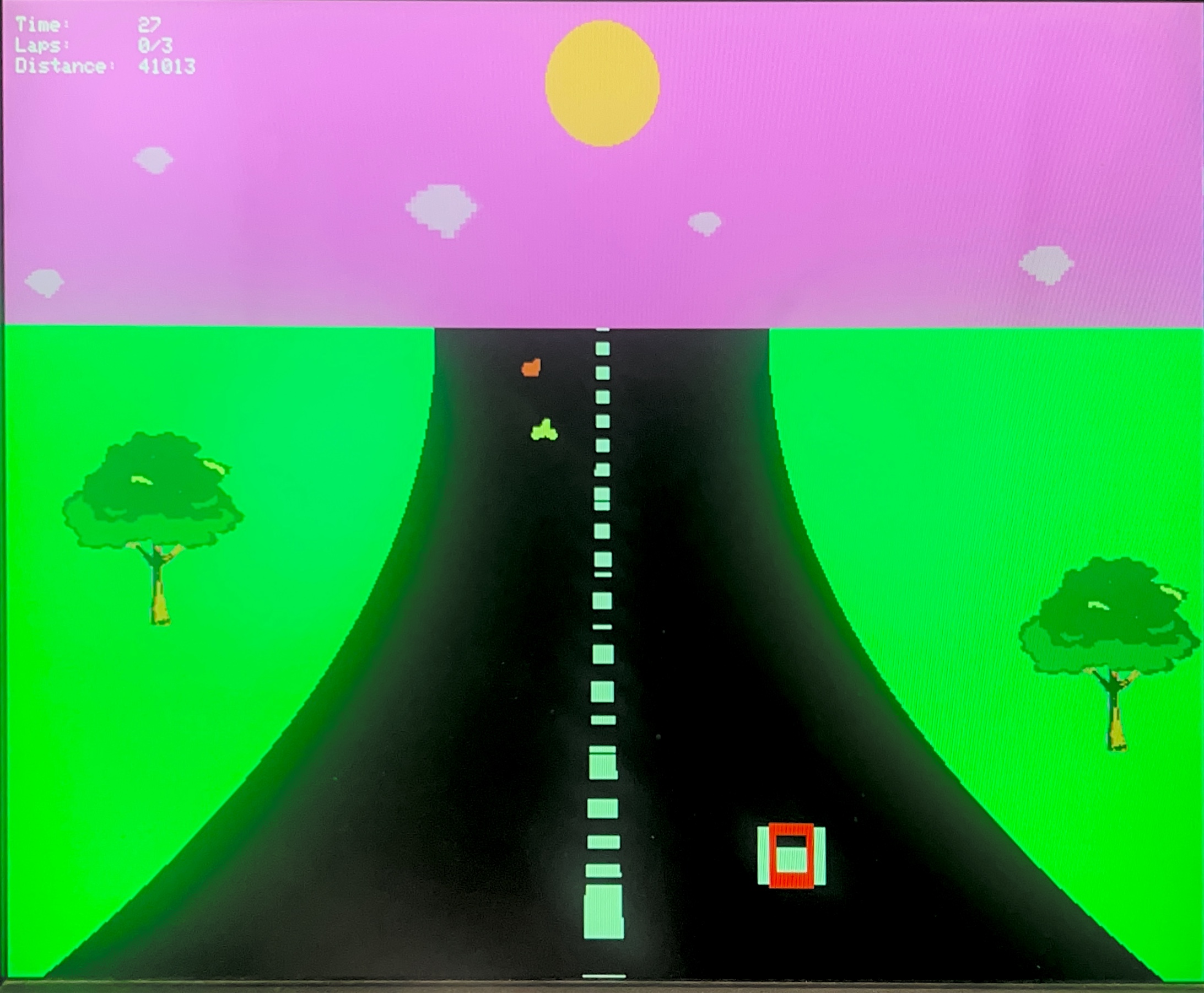

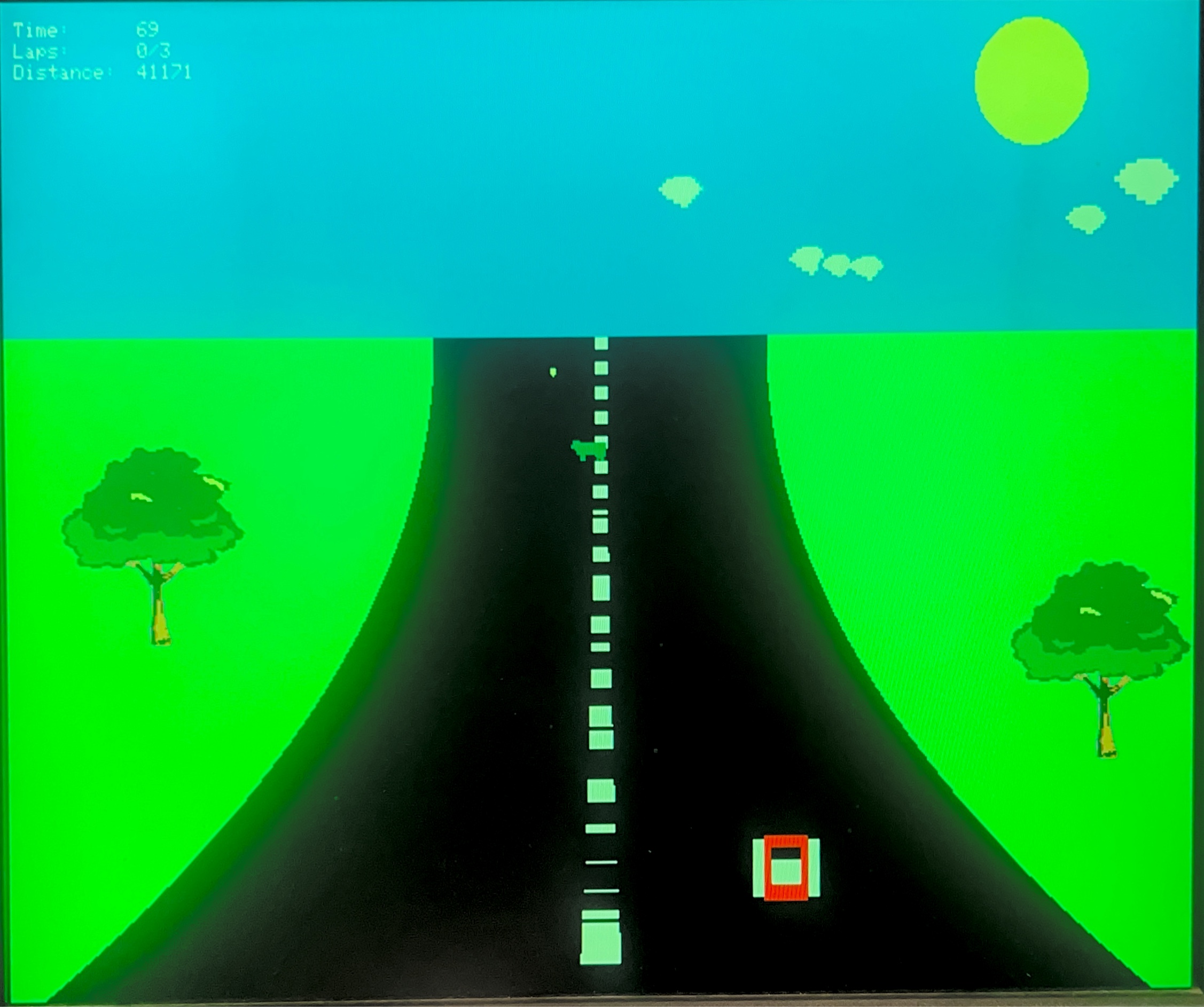

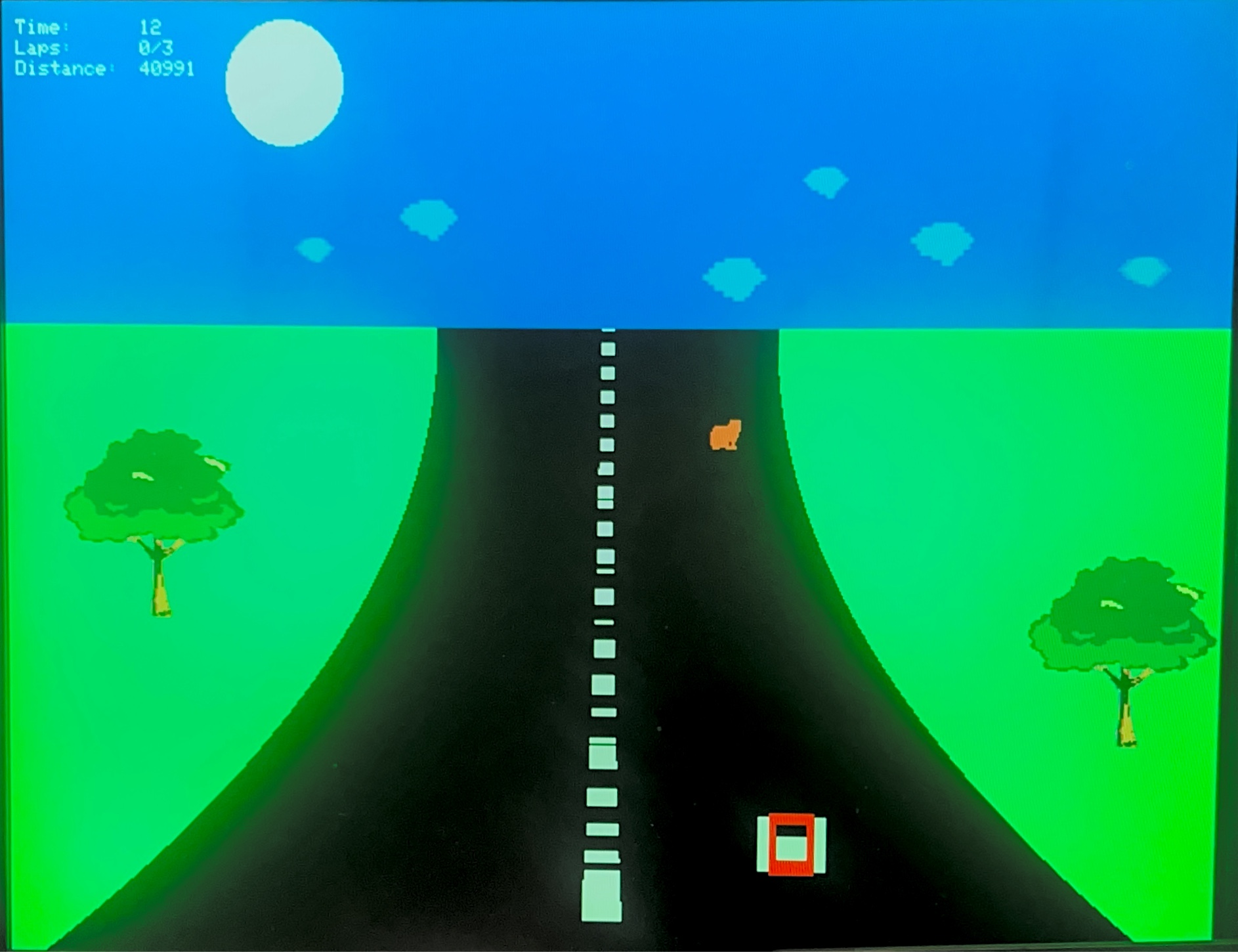

• Martha's weather machine (Pumpkin): Triggers a weather change (Morning → Sunset → Night → Morning), updating the background and visuals. Effect lasts temporarily before resetting back to Morning.





• Speed (Bell): Instantly boosts the kart’s velocity to its maximum. This speed-up effect is time-limited.
• Invincible (Dragon): Grants temporary invincibility. While active, collisions with obstacles no longer affect the player.

Obstacles

• Cow: Causes a minor setback by pushing the object upward and subtracting 5 units from your distance.
• Bear: Removes 10 units from distance and pushes the obstacle away.
• Banana: This obstacle deducts 15 units from distance.

In addition to these penalties, the racers velocity will turn to 0.

Design Tradeoffs

• Performance vs Quality: We implemented selective per scanline redrawing and persistent state arrays to avoid full screen redraws. While we initially wanted to add more obstacles, we found that increasing the number of draw/erase operations per frame caused significant VGA flickering and reduced the overall framerate. The VGA display, being driven entirely in software, became a bottleneck when too many pixels were updated each frame. As a result, we carefully balanced the number of on-screen objects to maintain smooth gameplay without overwhelming the system’s rendering capacity.
• Memory Management: Sprite data is statically compiled, and DMA buffers are carefully bounded to avoid fragmentation. To efficiently render complex shapes without allocating per pixel color data, we used bitmasks for all our sprites. This allowed us to encode each sprite’s shape compactly, using only 1 bit per pixel to indicate transparency vs. color presence. During rendering, we scanned each bit and only drew pixels where the bit was set, minimizing draw calls and saving both memory and compute time. This was critical to keeping the frame rate high while maintaining visual variety.
• Concurrency: We used semaphores and separate cores to decouple rendering from logic for increased responsiveness.

Program/Hardware Design

Software Components

The software architecture of PicoKart is designed to be modular and extensible. It implements a Cornell-themed racing game on the Raspberry Pi Pico using VGA output and SPI-based audio. The main components include:

• VGA Graphics: A VGA driver renders graphics at 640×480 resolution with a 16-color palette. The graphics engine is optimized for scanline rendering, enabling smooth animations and dynamic road generation with perspective effects.
• Audio Playback: High-quality sound is achieved through SPI communication with an external DAC. The audio engine supports both background music and sound effects.
• Input Handling: The system processes analog inputs from pedals and digital button inputs, using filtering and debouncing to ensure smooth and responsive control.
• Game Logic: Core gameplay features include:
  • Player-controlled kart with collision detection
  • Multiple obstacle types (cows, bears, bananas)
  • Power ups (speed boost, invincibility)
  • Lap tracking and race progression
  • Weather and day/night cycle system
  • Pedal-based acceleration and braking

The software is structured around a protothread model, allowing concurrent execution of multiple tasks while maintaining low overhead. This architecture enables smooth gameplay and responsive controls even under heavy load. Protothreads simplify the management of timing-sensitive tasks, such as audio playback and graphics rendering, allowing them to run in parallel without blocking each other.

The system is modular, with clear separation between components, allowing easy updates and modifications without affecting overall functionality. This modularity also facilitates testing and debugging, as each component can be developed and tested independently.

Leveraging the RP2040’s dual-core architecture enables efficient parallel processing: one core is dedicated to graphics rendering and game logic, while the other core handles audio playback. This separation ensures a high frame rate and low latency, even during complex scenes with multiple objects and effects.

Robustness and reliability are built in, with safety mechanisms to prevent crashes and undefined behavior. All critical variables use saturated arithmetic via clamped macros, and input values are validated to avoid unexpected behavior. The use of DMA buffers and hardware semaphores ensures the system can handle multiple tasks simultaneously without deadlock or resource contention.

Next, we will dive deeper into each function and how they work. We will detail the implementation of VGA graphics, how the VGA library facilitated this, and discuss issues we encountered along the way as well as creative solutions we devised to overcome them.

Main Function

From there, the system is divided into multiple protothreads:

Sound Playback Implementation: write_dac() and protothread_sfx()

Core Game Visuals: protothread_vga()

Gameplay Statistics and Pedal Input Management: protothread_stats()

Dynamic Background and Environmental Management: protothread_background()

PWM and Timing Control: pwm_wrap Implementation

void pwm_init() {
    pwm_config config = pwm_get_default_config();
    pwm_config_set_clkdiv(&config, 4.f); // Adjust clock divider for desired frequency
    pwm_config_set_wrap(&config, PWM_WRAP); // Set wrap value for period control
    pwm_init(PWM_SLICE, &config, true); // Enable PWM
}


uint16_t read_pedal_input(uint gpio_pin) {
    pwm_set_gpio_level(gpio_pin, 0); // Reset counter
    uint16_t pulse_width = pwm_get_counter(PWM_SLICE); // Measure high time
    uint16_t duty_cycle = (pulse_width * 100) / PWM_WRAP; // Convert to percentage
    return duty_cycle;
}


void pwm_wrap_handler() {
    if (pwm_hw->intr & (1 << PWM_SLICE)) {
        pwm_clear_irq(PWM_SLICE); // Clear interrupt flag
        // Trigger frame sync
        vga_frame_sync();
    }
}


Each protothread runs cooperatively, yielding control to ensure smooth, concurrent operation across the system. Shared resources (e.g., VGA buffer, game state variables) are accessed with minimal locking to avoid performance bottlenecks.

Conclusion

Overall, the software architecture balances performance, modularity, and ease of development. By leveraging RP2040’s dual cores, protothreads, and carefully optimized peripheral usage, PickKart delivers a rich racing game experience with responsive controls, detailed VGA graphics, and immersive audio – all running on a low-cost microcontroller platform.

Hardware Components

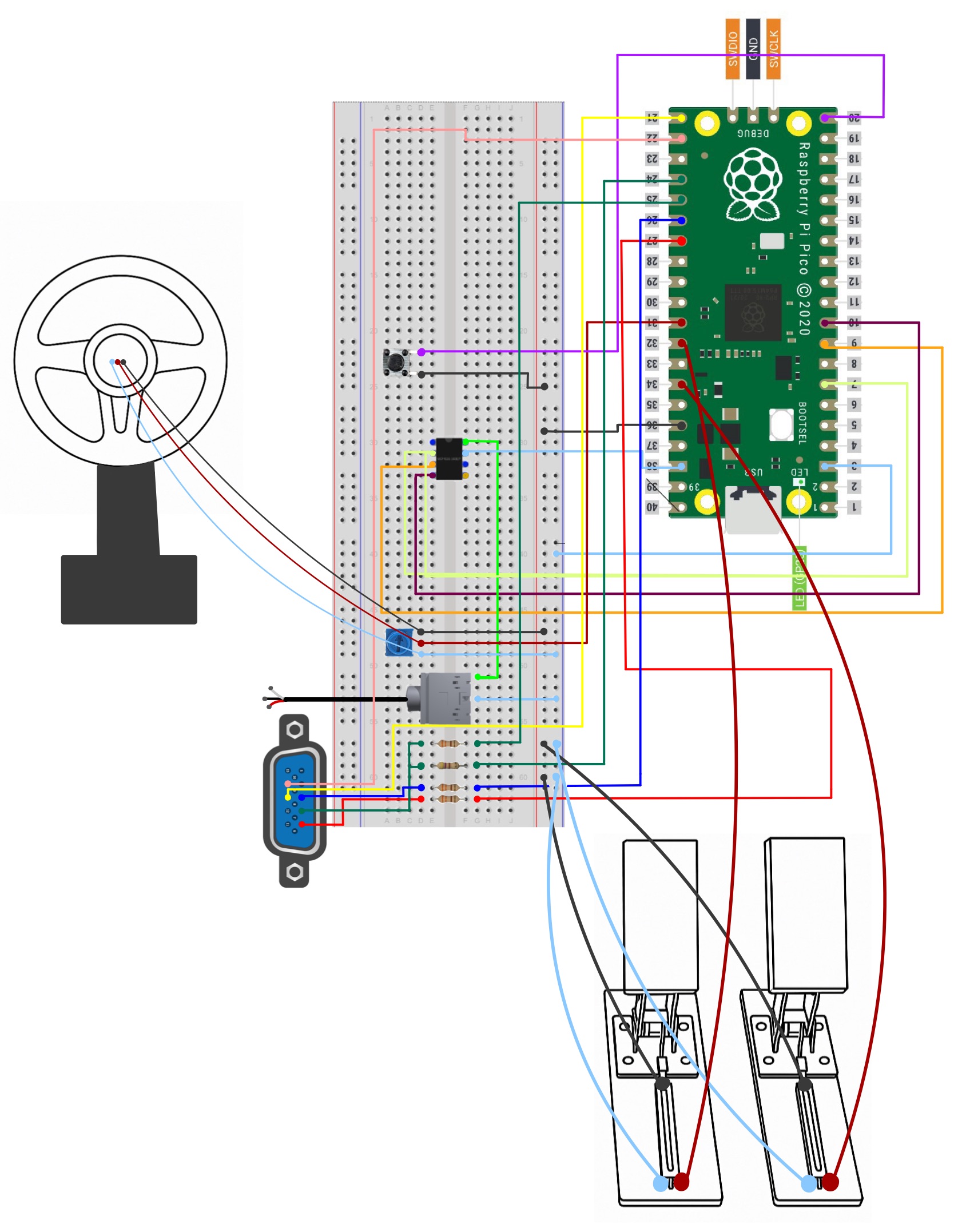

This schematic shows the physical wiring and system layout for the Pico Kart game, an RP2040-based kart-racing simulator with real-time VGA graphics and analog control via pedals and a steering wheel. The hardware setup integrates multiple peripherals for an immersive gameplay experience.

• VGA Video Output System:
  • GPIO 16: Hsync signal with precise timing for 640×480@60Hz
  • GPIO 17: Vsync signal (31.5kHz horizontal, 60Hz vertical refresh)
  • Color channels using weighted resistor DAC network:
    • GPIO 18: Green channel (470Ω resistor, MSB)
    • GPIO 19: Green channel (330Ω resistor, LSB)
    • GPIO 20: Blue channel (330Ω resistor)
    • GPIO 21: Red channel (330Ω resistor)
  • Timing-critical software rendering achieving 16-color palette
  • Custom graphics pipeline for dynamic perspective-correct road rendering
• Dual Racing Pedal System:
  • GPIO 26 (ADC0): Potentiometer for horizontal steering control with 12-bit precision
  • GPIO 27 (ADC1): Left pedal (brake) with exponential response curve for realistic deceleration
  • GPIO 28 (ADC2): Right pedal (accelerator) with graduated acceleration physics
  • Software-implemented exponential moving average filter (α=0.1) for smooth input
  • Calibrated deadzone handling for consistent control response
  • Configurable sensitivity (POT_MAX_MM=50.0) for all controls
• Audio Synthesis & Playback:
  • Full SPI-driven DAC implementation:
    • GPIO 4 (MISO): Serial data line
    • GPIO 5 (CS): Chip select for DAC addressing
    • GPIO 6 (SCK): Serial clock at 20MHz
    • GPIO 7 (MOSI): Master out slave in
    • GPIO 8 (LDAC): Latch DAC for synchronized updates
  • DMA-accelerated audio playback at 44.1kHz sample rate
  • 12-bit audio resolution for high-quality sound effects
  • Double-buffered audio system with zero CPU overhead during playback
  • Hardware timer triggering for sample-accurate timing
• Control & Interface Systems:
  • GPIO 15: Game control button with hardware debouncing and pull-up resistor
  • Dual-core processing architecture:
    • Core 0: Audio processing and physics calculations
    • Core 1: Graphics rendering and game state management
  • Inter-processor communication via hardware semaphores
  • PWM-based timing system for consistent game loop execution
  • Deterministic frame rate with VGA synchronization

Hardware Challenges

Steering Potentiometer Upgrade: Originally, we used one of the small blue trimmer-style potentiometers for steering input, connected to GPIO 26. However, it was flimsy, difficult to mount, and didn’t provide a smooth range of motion—making fine control nearly impossible. To improve robustness and usability, we switched to a metal 10kΩ potentiometer with a built-in knob. The new potentiometer was much sturdier and easier to mount inside the custom 3D-printed steering wheel. It offered smoother rotational input, and when paired with an exponential moving average filter (α = 0.2), it greatly improved control accuracy and responsiveness during gameplay.

Mechanical Mounting Issues: During initial playtesting, we discovered that the physical setup lacked robustness. The gas and brake pedals, though functional, would shift on the table due to poor grip, and the steering wheel axle exhibited noticeable wobble when pressure was applied. These mechanical inconsistencies affected both gameplay and input repeatability. To improve reliability, we reinforced the pedal brackets and stabilized the steering wheel mount. These adjustments resulted in a setup that remained secure even during intense gameplay, enabling more precise and responsive control.

Breadboard and Wiring Limitations: With more than 25 jumper wires connecting the RP2040 to VGA, audio components, analog controls, and buttons, the breadboard quickly became cluttered and fragile. Minor bumps could disconnect essential wires, sometimes breaking the game mid-demo. To address this, we organized the wiring into modular sections, using color coding and labels to distinguish each subsystem. We also added pin headers for easier debugging of analog inputs and used hot glue to anchor critical connections. These efforts greatly reduced the chances of accidental disconnection and improved the system’s resilience during testing and presentation.

Reused Code & Libraries

We leveraged several foundational libraries from Cornell ECE4760 to accelerate development and focus on game-specific features. The vga16_graphics.h library was used for pixel-accurate VGA rendering with 16-color support. This enabled us to build scanline-based animations, dynamic object rendering, and custom sprite support.

Additionally, we built on top of the pt_cornell_rp2040 protothread library to implement concurrent tasks for display, input handling, and game logic. This allowed us to split time-sensitive graphics updates across two cores, while background threads handled audio and obstacle generation.

Development Challenges

Results

Performance Metrics

• Frame Rate: The game maintains an average frame rate of ~40 frames per second (fps), achieved through selective redraw strategies, cached scanline states, and dual-core processing. VGA signal timing remains stable with no visual artifacts.
• Input Responsiveness: Input latency stays under 50ms through immediate ADC sampling and lightweight filtering. Collision detection and game state updates happen within a single frame, with no perceptible delay.
• Visual Accuracy: Road curvature follows smooth sinusoidal patterns that adjust based on gameplay progression. Vertical perspective creates convincing depth scaling for the road and obstacles. Collision detection uses precisely tuned hitboxes for fair gameplay.
• Audio Delivery: Background music plays via DMA-fed SPI communication with a 12-bit DAC, requiring no CPU cycles during playback. Although we initially planned multiple sound effects, memory constraints led us to focus on a single high-quality background track.

System Robustness

• Safety Features: Multiple safeguards prevent unstable behavior:
  • DMA buffers were statically allocated and padded with guard bytes to catch accidental overflows during development.
  • Input velocities were bounded and discretized to prevent discontinuous accelerations from noisy ADC values.
  • ADC value clamping and smoothing prevents abrupt velocity changes
  • Button debouncing prevents accidental triggers
  • Value bounding prevents numeric overflow in all calculations
  • Static DMA buffer allocation ensures memory safety
• Input velocities were bounded and discretized to prevent discontinuous accelerations from noisy ADC values.
• ADC value clamping and smoothing prevents abrupt velocity changes
• Button debouncing prevents accidental triggers
• Value bounding prevents numeric overflow in all calculations
• Static DMA buffer allocation ensures memory safety

Conclusions

Pico Kart achieved nearly everything we set out to do—and in some ways, surpassed our initial expectations. We originally scoped the project as a proof-of-concept for pseudo-3D rendering on the RP2040, but ended up building a playable racing game with real-time obstacle interaction, smooth player controls, and convincing visual depth using only 2D scanline-level tricks. The scanline renderer with road curvature, horizon scaling, and inline sprite detection pushed the microcontroller to its limits and still hit consistent 60Hz VGA output.

Our biggest technical win was performance optimization under tight constraints. We had to redesign parts of the renderer multiple times to reduce memory contention and instruction latency. That said, audio was where we made the biggest compromise—we limited ourselves to a single looping track, foregoing sound effects to ensure that frame timing and input latency stayed tight. If we had to do it again, we'd explore using the second core on the RP2040 to offload either audio or game logic, and consider using DMA or PIO for rendering acceleration.

Standards & Compliance

We made sure to align our system with applicable hardware and communication standards throughout. The VGA signal followed the 640×480 @ 60Hz spec with correct sync pulse timing, verified using an oscilloscope. SPI communication with the DAC (MCP4921) respected clock polarity and timing as per its datasheet. Analog input was pulled through properly configured ADC channels within voltage limits, and I2C transactions with the MPU6050 followed the documented register and delay sequences. We stuck to published microcontroller specifications, avoiding overclocking or undocumented behavior.

Intellectual Property

All core gameplay, logic, and rendering code were independently developed by our team. We did not reuse or reverse-engineer any commercial game engines. The only external code we used was from Cornell’s public educational libraries— specifically, vga16_graphics.h and pt_cornell_rp2040. These were foundational for display primitives and protothread support, but the scanline engine, curvature system, and gameplay were entirely original. The audio taken for our sound is NOT copyrighted.

Team Contribution

Appendix A: Permissions

The group approves this report for inclusion on the course website.

The group approves the video for inclusion on the course YouTube channel.

Appendix B: References

• RP2040 Datasheet
• Public-domain audio (FreeSound.org)
• ECE 4760 Course Demo
• Pi Pico datasheet
• Protothreads on RP2040 (from Bruce)

Appendix C: Code

File: imu_demo.c

// Include standard libraries
#include
#include
#include
#include
// Include PICO libraries
#include "pico/stdlib.h"
#include "pico/multicore.h"
// Include hardware libraries
#include "hardware/pwm.h"
#include "hardware/dma.h"
#include "hardware/irq.h"
#include "hardware/adc.h"
#include "hardware/pio.h"
#include "hardware/i2c.h"
#include "hardware/clocks.h"
#include "hardware/spi.h"
// Include custom libraries
#include "vga16_graphics.h"
#include "mpu6050.h"
#include "pt_cornell_rp2040_v1_3.h"
#include "character.h"
#include "tree.h"
#include "clock.h"
#include "intro.h"
#include "pico/rand.h"
// sound
// #include "sounds/moo.h"
#include "sounds/sfx.h"
#include "youwins.h"

// DAC configuration for Channel A and Channel B
#define DAC_CONFIG_CHAN_A 0b0011000000000000
#define DAC_CONFIG_CHAN_B 0b1011000000000000

#define YOUWIN_WIDTH 320
#define YOUWIN_HEIGHT 240
extern const unsigned short vga_image_win[YOUWIN_WIDTH * YOUWIN_HEIGHT];

#define PIN_MISO 4
#define PIN_CS 5
#define PIN_SCK 6
#define PIN_MOSI 7
#define LDAC 8

// DMA channels
int data_channel, control_channel;

// Sine table and DAC data for audio output
#define SINE_TABLE_SIZE 256
int raw_sin[SINE_TABLE_SIZE];
unsigned short DAC_data[SINE_TABLE_SIZE];
unsigned short *dac_data_pointer = &DAC_data[0];

// SPI configurations (note these represent GPIO number, NOT pin number)
#define PIN_MISO 4
#define PIN_CS 5
#define PIN_SCK 6
#define PIN_MOSI 7
#define LDAC 8
#define NORMAL_VELOCITY 5

// SPI Configuration settings for RP2040
#define SPI_PORT spi0
#define SPI_BAUDRATE 500000 // Set baudrate for SPI communication

#define TREE_WIDTH 100
#define TREE_HEIGHT 100

#define LEFT_TREE_X 30
#define RIGHT_TREE_X (SCREEN_WIDTH - 30 - TREE_WIDTH)
#define TREE_Y SKY_HEIGHT + 50

#define FLOWER_SIZE 10 // try 4×4 pixels
#define MAX_VELOCITY 7
#define MIN_VELOCITY 0
#define GRASS_COLOR GREEN

#define CLOCKTOWER_WIDTH 133
#define CLOCKTOWER_HEIGHT 200
#define CLOCKTOWER_X (SCREEN_WIDTH / 2 - CLOCKTOWER_WIDTH / 2)
#define CLOCKTOWER_Y 60

// Add this with other global variables
volatile float velocity_accumulator = 0.0f;
#define NORMAL_VELOCITY 5
#define ACCUMULATION_RATE 0.1f
#define ACCUMULATOR_DECAY 0.1f
#define MAX_ACCUMULATOR 5.0f

#define MAX_SCANLINE 480

#define BUTTON_PIN 15

#define SPEED_BOOST 8
volatile uint16_t background_stats = LIGHT_BLUE;

static int prev_left_edges[MAX_SCANLINE];
static int prev_right_edges[MAX_SCANLINE];
static int prev_center_x[MAX_SCANLINE];
static int prev_dash_width[MAX_SCANLINE];
static bool prev_had_dash[MAX_SCANLINE];

static const float CURVE_PERIOD = 240.0f;
// SUPER curvy is 50
static float amplitude = 0.0f;
static float curve_phase = 0.0f;
static const float curve_speed = 0.003f;

#define GRASS_COLOR GREEN
static const uint16_t FLOWER_COLORS[] = {LIGHT_PINK, YELLOW, WHITE, MAGENTA, ORANGE, LIGHT_BLUE, PINK, RED, DARK_ORANGE};
#define NUM_FLOWERS 150

#define MAX_SCANLINE 480

static int prev_left_edges[MAX_SCANLINE];
static int prev_right_edges[MAX_SCANLINE];
static bool road_first_frame = true;

typedef struct
{
    int x, y;
    uint16_t color;
} Flower;
static Flower flowers[NUM_FLOWERS];

enum PowerUps
{
    Non,

    Martha,    // pumpkin
    Speed,     // bell
    Invincible // dragon
};

enum Obstacles
{
    None,
    Cow,    // cow
    Bear,   // bear
    Banana, // banana
};

enum Weather
{
    Morning,
    Sunset,
    Night
};

typedef struct
{
    int x;
    int y;
    int width;
    int height;
    int prev_x;
    int prev_y;
    float prev_scale;
    enum PowerUps p;
    enum Obstacles o;
    bool active;
    bool needs_erase;
} Objects;

enum Weather w = Morning;
bool update_background = false;
volatile int weather_duration = -1;

fix15 boost = 1.5;
bool invincible = false;
bool speed_up = false;
volatile int speed_duration = -1;
volatile int invincible_duration = -1;
;

// Road variable
volatile float road_scroll = 0.0f;

// for hill: 150, 150.0f, 550.0f
#define SKY_HEIGHT 160

#define POT0_ADC_CH 0 // GPIO27
#define POT1_ADC_CH 1 // GPIO27
#define POT2_ADC_CH 2 // GPIO28
#define POT0_MAX_MM 50.0f
#define POT1_MAX_MM 50.0f
#define POT2_MAX_MM 50.0f

// FOR NOW we define the track as following, a lap is 80k:
#define LAP_LENGTH 80000

// From 10k - 20k we mildy increase the road to a cap
#define DIST_MILD_START 10000
#define DIST_MILD_END 20000
#define AMP_MILD_CAP 20.0f
// We increase the amplitude every MILD_CHANGE units
#define MILD_CHANGE 400

// From 20 - 30k we go from the mild cap to the max cap
#define DIST_MAX_START 20000
#define DIST_MAX_END 30000
#define AMP_MAX_CAP 80.0f
// We increase the amplitude every MAX_CHANGE units
#define MAX_CHANGE 150

// From 50k and onward we go back to an amplitude of 0
#define DIST_STRAIGHT_START 50000
// Decrease every STRAIGHT_CHANGE units
#define STRAIGHT_CHANGE 250

char display_text[40]; // Display text buffer

#define MAX_OBSTACLES 3

Objects obstacles[MAX_OBSTACLES];

static struct pt_sem vga_sem;
#define min(a, b) ((a < b) ? a : b)
#define max(a, b) ((a < b) ? b : a)
#define abs(a) ((a > 0) ? a : -a)

#define WRAPVAL 1000
#define CLKDIV 25.0
uint pwm_slice;

#define KART_WIDTH 20
#define SCREEN_WIDTH 640
#define RECT_WIDTH 20
#define ADC_MAX 4095
#define UPDATE_FACTOR 20

#define VGA_HEIGHT 480

volatile int distance = 0;
volatile int time = 0;
volatile int laps = 0;

typedef struct
{
    float x;
    int y;
    int height;
    int width;
    int velocity;
    bool invincible;
} Racer;

Racer racer = {320, 400, 42, 42, 5, false};

static inline float getRoadCurve(int y)
{
    return amplitude * sinf(curve_phase + 2.0f * 3.14159f * ((float)y + road_scroll) / CURVE_PERIOD);
}

bool collision(float obj_x, int obj_width, float obj_y, int obj_height)
{

    // Get the boundaries of the kart
    float kart_left = racer.x;
    float kart_right = racer.x + racer.width;
    float kart_top = racer.y;
    float kart_bottom = racer.y + racer.height;

    // Get the boundaries of the obstacle
    float obj_left = obj_x;
    float obj_right = obj_x + obj_width;
    float obj_top = obj_y;
    float obj_bottom = obj_y + obj_height;

    // drawRect(obj_left, obj_top, obj_width, obj_height, RED);

    // Check for overlap in both x and y directions
    bool x_overlap = !(kart_right < obj_left || kart_left > obj_right);
    bool y_overlap = !(kart_bottom < obj_top || kart_top > obj_bottom);

    // Return true if there is overlap and the kart is not invincible
    return x_overlap && y_overlap && !racer.invincible;
}

static void show_win_screen(void)
{
    // 1) clear to black (or whatever background)
    fillRect(0, 0, SCREEN_WIDTH, VGA_HEIGHT, RED);

    // 2) center the image (optional — if you want full-screen, set x0=y0=0)
    const int w = YOUWIN_WIDTH;
    const int h = YOUWIN_HEIGHT;
    const int x0 = (SCREEN_WIDTH - w) / 2;
    const int y0 = (VGA_HEIGHT - h) / 2;

    // 3) blit it pixel-by-pixel
    for (int y = 0; y < h; y++)
    {
        for (int x = 0; x < w; x++)
        {
            uint8_t color = vga_image_win[y * w + x] & 0x0F;
            drawPixel(x0 + x, y0 + y, color);
        }
    }

    // 4) optionally wait for the user to hit the button before continuing
    while (gpio_get(BUTTON_PIN))
    {
        tight_loop_contents();
    }
}

static inline void drawObject(int x, int y, bool obstacle, int type, float ratio, bool erase)
{
    // Draw the object at the specified position with the given color and scale
    if (obstacle)
    {
        if (type == Cow)
        {
            if (erase)
            {
                draw_cow_bitmask_scaled(x, y, BLACK, ratio);
            }
            else
            {
                draw_cow_bitmask_scaled(x, y, MED_GREEN, ratio);
            }
        }
        else if (type == Bear)
        {
            if (erase)
            {
                draw_bear_bitmask_scaled(x, y, BLACK, ratio);
            }
            else
            {
                draw_bear_bitmask_scaled(x, y, DARK_ORANGE, ratio);
            }
        }
        else if (type == Banana)
        {
            if (erase)
            {
                draw_banana_bitmask_scaled(x, y, BLACK, ratio);
            }
            else
            {
                draw_banana_bitmask_scaled(x, y, YELLOW, ratio);
            }
        }
    }
    else
    {
        if (type == Speed)
        {
            if (erase)
            {
                draw_bell_bitmask_scaled(x, y, BLACK, ratio);
            }
            else
            {
                draw_bell_bitmask_scaled(x, y, YELLOW, ratio);
            }
        }
        else if (type == Invincible)
        {
            if (erase)
            {
                draw_dragon_bitmask_scaled(x, y, BLACK, ratio);
            }
            else
            {
                draw_dragon_bitmask_scaled(x, y, MAGENTA, ratio);
            }
        }
        else if (type == Martha)
        {
            if (erase)
            {
                draw_pumpkin_bitmask_scaled(x, y, BLACK, ratio);
            }
            else
            {
                draw_pumpkin_bitmask_scaled(x, y, ORANGE, ratio);
            }
        }
    }
}

typedef struct
{
    int x, y, speed;
    float scale;
} Cloud;

static Cloud clouds[CLOUD_COUNT];

static int prev_kart_x = 320;

// scatter clouds randomly across the sky height
void init_clouds()
{
    for (int i = 0; i < CLOUD_COUNT; i++)
    {
        clouds[i].x = get_rand_32() % SCREEN_WIDTH;
        clouds[i].y = 70 + (get_rand_32() % (SKY_HEIGHT - 95));
        clouds[i].speed = 1 + (get_rand_32() % 3);                   // speed = 1 or 2 px/frame
        clouds[i].scale = 1.25f + ((float)get_rand_32() / RAND_MAX); // scale = 1.0 to <3.0
    }
}

void draw_cloud(const Cloud *c, uint16_t color)
{
    draw_cloud_bitmask_scaled(c->x, c->y, color, c->scale);
}

void draw_dynamic_road()
{
    const int road_center = 320;
    const int base_road_width = 600;
    const uint16_t ROAD_COLOR = BLACK;
    const uint16_t ROAD_BACKGROUND = GRASS_COLOR;
    const uint16_t CENTER_LINE_COLOR = WHITE;

    // Define dash parameters
    const int dash_length_base = 20;       // Base length of each dash at bottom of screen
    const int dash_gap_base = 20;          // Base length of gap between dashes
    const float dash_width_factor = 0.04f; // Width of dash as fraction of road width

    static bool first_frame = true;
    static float dash_offset = 0.0f; // Offset for dash animation

    // Define car area to avoid drawing over it
    const int car_left = racer.x;
    const int car_right = racer.x + 40;
    const int car_top = 400;
    const int car_bottom = 440;

    // Initialize arrays on first run
    if (first_frame)
    {
        for (int y = 0; y < 480; y++)
        {
            prev_left_edges[y] = road_center - base_road_width / 2;
            prev_right_edges[y] = road_center + base_road_width / 2;
            prev_center_x[y] = road_center;
            prev_dash_width[y] = 0;
            prev_had_dash[y] = false;
        }
        // Clear a wider road area
        fillRect(100, SKY_HEIGHT, 440, 480 - SKY_HEIGHT, ROAD_BACKGROUND);

        // for (int i = 0; i < NUM_FLOWERS; i++)
        // {
        //     flowers[i].x = rand() % SCREEN_WIDTH;
        //     flowers[i].y = SKY_HEIGHT + rand() % (VGA_HEIGHT - SKY_HEIGHT);
        //     flowers[i].color = FLOWER_COLORS[rand() % (sizeof(FLOWER_COLORS) / sizeof(FLOWER_COLORS[0]))];
        // }
    }

    // Update curve parameters
    curve_phase += curve_speed;

    // Update dash offset based on racer velocity
    dash_offset += racer.velocity;
    if (dash_offset >= (dash_length_base + dash_gap_base))
        dash_offset = 0.0f;

    // Draw the road line by line
    for (int y = 479; y >= SKY_HEIGHT; y--)
    {
        // Calculate progression down the road (0.0 at horizon, 1.0 at bottom)
        float progression = (float)(y - SKY_HEIGHT) / (480 - SKY_HEIGHT);

        // Minimum scale factor for thicker road at horizon
        float min_scale = 0.3f;

        // Adjusted perspective scale
        float perspective_scale = min_scale + (1.0f - min_scale) * (progression * progression);

        // Calculate road width at this position
        int road_width = base_road_width * perspective_scale;

        // Calculate curve
        float curve = getRoadCurve((float)y);

        int shift = curve;

        int left_edge = road_center - road_width / 2 - shift;
        int right_edge = road_center + road_width / 2 - shift;

        // Calculate center of road at this y-coordinate (accounting for curve)
        int center_x = (left_edge + right_edge) / 2;

        // Check if this line overlaps with any active obstacles
        bool has_obstacle = false;
        for (int i = 0; i < MAX_OBSTACLES; i++)
        {
            if (obstacles[i].active)
            {
                // Calculate obstacle dimensions based on perspective
                float obs_progression = (float)(obstacles[i].y - SKY_HEIGHT) / (480.0f - SKY_HEIGHT);
                float obs_scale = 0.2f + obs_progression * 2.0f;
                int obs_width = obs_scale * 20;
                int obs_height = obs_scale * 20;

                // Get obstacle boundaries
                int obs_y = obstacles[i].y - obs_height;
                int obs_x = obstacles[i].x - obs_width / 2;

                // Check if this scanline intersects with the obstacle
                if (y >= obs_y && y < obstacles[i].y)
                {
                    has_obstacle = false;
                    break;
                }
            }
        }

        // Selectively erase and redraw only the changed portions
        if (!first_frame)
        {
            // Erase left portion if it's now inside the road
            if (left_edge > prev_left_edges[y])
            {
                drawHLine(prev_left_edges[y], y, left_edge - prev_left_edges[y], ROAD_BACKGROUND);
            }

            // Erase right portion if it's now inside the road
            if (right_edge < prev_right_edges[y])
            {
                drawHLine(right_edge, y, prev_right_edges[y] - right_edge, ROAD_BACKGROUND);
            }

            // Draw left portion if it's now part of the road
            if (left_edge < prev_left_edges[y])
            {
                drawHLine(left_edge, y, prev_left_edges[y] - left_edge, ROAD_COLOR);
            }

            // Draw right portion if it's now part of the road
            if (right_edge > prev_right_edges[y])
            {
                drawHLine(prev_right_edges[y], y, right_edge - prev_right_edges[y], ROAD_COLOR);
            }

            // If there was a dash here previously, erase it first
            if (prev_had_dash[y])
            {
                int half_width = prev_dash_width[y] / 2;
                if (half_width < 1)
                    half_width = 1;
                drawHLine(prev_center_x[y] - half_width, y, prev_dash_width[y], ROAD_COLOR);
            }
        }
        else
        {
            // For first frame, draw the entire line
            drawHLine(left_edge, y, right_edge - left_edge, ROAD_COLOR);
        }

        // Draw center dashed line
        // Calculate dash parameters with perspective
        int dash_width = road_width * dash_width_factor;
        if (dash_width < 1)
            dash_width = 1;

        // Scale dash length and gap based on perspective
        int dash_length = dash_length_base * perspective_scale;
        int dash_gap = dash_gap_base * perspective_scale;

        // Only draw dash if not in a gap area
        float adjusted_y = y + road_scroll;
        int dash_cycle = dash_length + dash_gap;
        int dash_pos = ((int)adjusted_y) % dash_cycle;

        // Track whether this scanline has a dash for next frame
        bool has_dash = dash_pos < dash_length && !has_obstacle;

        if (has_dash)
        {
            // Ensure the dash width is at least 1 pixel
            int half_width = (dash_width / 2);
            if (half_width < 1)
                half_width = 1;

            // Draw the center dash at this y-coordinate
            drawHLine(center_x - half_width, y, dash_width, CENTER_LINE_COLOR);
        }

        // Store current values for next frame
        prev_left_edges[y] = left_edge;
        prev_right_edges[y] = right_edge;
        prev_center_x[y] = center_x;
        prev_dash_width[y] = dash_width;
        prev_had_dash[y] = has_dash;
    }

    // Update road_scroll
    road_scroll -= racer.velocity;
    if (road_scroll < 0.0f)
    {
        road_scroll += 240.0f;
    }

    // No longer first frame
    first_frame = false;
}

void spawn_obstacle()
{
    for (int i = 0; i < MAX_OBSTACLES; i++)
    {
        if (!obstacles[i].active)
        {
            // Calculate road properties at spawn position
            float spawn_progression = (float)(obstacles[i].y - SKY_HEIGHT) / (480.0f - SKY_HEIGHT);
            float min_scale = 0.3f;
            float perspective_scale = min_scale + (1.0f - min_scale) * (spawn_progression * spawn_progression);

            // Calculate the exact curve at this position
            float curve = getRoadCurve((float)obstacles[i].y);

            // Calculate road width and edges at spawn point
            int base_road_width = 450;
            int road_width = base_road_width * perspective_scale;
            int road_center = 320;

            // Start obstacle slightly below horizon for better visibility
            obstacles[i].y = SKY_HEIGHT + 15;

            // Set obstacle position with exact curve offset
            float left = (float)get_rand_32() / (float)UINT32_MAX;
            float offset = ((float)get_rand_32() / UINT32_MAX) * (road_width * 0.8f);
            if (left < 0.5)
            {

                obstacles[i]
                    .x = road_center + curve + offset;
            }
            else
            {
                obstacles[i]
                    .x = road_center + curve - offset;
            }

            // Initialize the tracking variables
            obstacles[i].prev_x = obstacles[i].x;
            obstacles[i].prev_y = obstacles[i].y;
            obstacles[i].prev_scale = 0.2f + spawn_progression * 2.0f;
            obstacles[i].needs_erase = false; // First frame doesn't need erasing

            obstacles[i].active = true;

            float rand = (float)get_rand_32() / (float)UINT32_MAX;

            float p = .33;
            int num = get_rand_32() % 3;

            if (rand < p)
            {
                // Set to false for now
                obstacles[i].o = Non;

                if (num == Speed)
                {
                    obstacles[i].p = Speed;
                    obstacles[i].width = BELL_WIDTH;
                    obstacles[i].height = BELL_HEIGHT;
                }
                else if (num == Invincible)
                {
                    obstacles[i].p = Invincible;
                    obstacles[i].width = DRAGON_WIDTH;
                    obstacles[i].height = DRAGON_HEIGHT;
                }
                else
                {
                    obstacles[i].p = Martha;
                    obstacles[i].width = PUMPKIN_WIDTH;
                    obstacles[i].height = PUMPKIN_HEIGHT;
                }
            }
            else
            {
                // Set false for now
                obstacles[i].p = None;

                if (num == Bear)
                {
                    obstacles[i].o = Bear;
                    obstacles[i].width = BEAR_WIDTH;
                    obstacles[i].height = BEAR_HEIGHT;
                }
                else if (num == Cow)
                { // works!! DO NOT TOUCH
                    obstacles[i].o = Cow;
                    obstacles[i].width = COW_WIDTH;
                    obstacles[i].height = COW_HEIGHT;
                }
                else
                {
                    obstacles[i].o = Banana;
                    obstacles[i].width = BANANA_WIDTH;
                    obstacles[i].height = BANANA_HEIGHT;
                }
            }
            break;
        }
    }
}

void on_pwm_wrap()
{
    pwm_clear_irq(pwm_gpio_to_slice_num(5));

    static int update_counter = 0;

    update_counter++;
    if (update_counter < UPDATE_FACTOR)
    {
        PT_SEM_SIGNAL(pt, &vga_sem);
        return;
    }
    update_counter = 0;

    // Read and low-pass filter potentiometer value
    adc_select_input(0);
    uint16_t raw_val = adc_read();

    static float smooth_val = 0;
    float alpha = 0.05;
    smooth_val = (1.0f - alpha) * smooth_val + alpha * raw_val;
    uint16_t pot_val = (uint16_t)smooth_val;

    if (pot_val > ADC_MAX)
        pot_val = ADC_MAX;

    // Get the road boundaries at the car's y-position
    int road_y = racer.y;
    float progression = (float)(road_y - SKY_HEIGHT) / (480.0f - SKY_HEIGHT);
    float curve = getRoadCurve((float)road_y);

    // Calculate road properties at this y-position (similar to how it's done in draw_dynamic_road)
    float min_scale = 0.3f;
    float perspective_scale = min_scale + (1.0f - min_scale) * (progression * progression);
    int base_road_width = 600; // Match the value used in draw_dynamic_road
    int road_width = base_road_width * perspective_scale;
    int road_center = 320;
    int shift = curve;

    // Calculate left and right road edges
    int left_edge = road_center - road_width / 2 - shift;
    int right_edge = road_center + road_width / 2 - shift;

    // Add margins (larger on the right side)
    int left_margin = 10;
    int right_margin = 30; // Increased right margin to restrict range on the right
    int usable_left = left_edge + left_margin;
    int usable_right = right_edge - right_margin - KART_WIDTH;
    int usable_width = usable_right - usable_left;

    // Map potentiometer value to the dynamic road width
    racer.x = usable_left + ((ADC_MAX - pot_val) * usable_width) / ADC_MAX;

    // Ensure the car stays within the road boundaries
    if (racer.x < usable_left)
        racer.x = usable_left;
    if (racer.x > usable_right)
        racer.x = usable_right;

    // Signal VGA update
    PT_SEM_SIGNAL(pt, &vga_sem);
}

// Does all background logic for stats n sky n such
static PT_THREAD(protothread_background(struct pt *pt))
{
    // Spawn obstacles between this min and max units
    int min_obstacle_spawn = 1000;
    int max_obstacle_spawn = 1500;
    int obstacle_threshold = (get_rand_32() % (max_obstacle_spawn - min_obstacle_spawn)) + min_obstacle_spawn;

    PT_BEGIN(pt);

    init_clouds();
    static int distance_amp_threshold = 0;
    static int distance_lap_tracker = 0;

    static int distance_obstacle_tracker = 0;
    while (1)
    {
        // 1) draw & move clouds
        PT_SEM_WAIT(pt, &vga_sem);

        if (w == Morning)
        {
            for (int i = 0; i < CLOUD_COUNT; i++)
            {
                draw_cloud(&clouds[i], LIGHT_BLUE);
                clouds[i].x += clouds[i].speed;
                if (clouds[i].x > SCREEN_WIDTH)
                    clouds[i].x = -CLOUD_WIDTH; // wrap back to left
                draw_cloud(&clouds[i], WHITE);
            }
        }
        else if (w == Sunset)
        {
            for (int i = 0; i < CLOUD_COUNT; i++)
            {
                draw_cloud(&clouds[i], PINK);
                clouds[i].x += clouds[i].speed;
                if (clouds[i].x > SCREEN_WIDTH)
                    clouds[i].x = -CLOUD_WIDTH; // wrap back to left
                draw_cloud(&clouds[i], LIGHT_PINK);
            }
        }
        else if (w == Night)
        {
            for (int i = 0; i < CLOUD_COUNT; i++)
            {
                draw_cloud(&clouds[i], BLUE);
                clouds[i].x += clouds[i].speed;
                if (clouds[i].x > SCREEN_WIDTH)
                    clouds[i].x = -CLOUD_WIDTH; // wrap back to left
                draw_cloud(&clouds[i], LIGHT_BLUE);
            }
        }

        PT_SEM_SIGNAL(pt, &vga_sem);

        if (distance - distance_obstacle_tracker > obstacle_threshold)
        {
            spawn_obstacle();
            distance_obstacle_tracker = distance;
            obstacle_threshold = (get_rand_32() % (max_obstacle_spawn - min_obstacle_spawn)) + min_obstacle_spawn;
        }

        // Here is how the track goes:

        // 50k+ we straighten the curve
        if (distance >= DIST_STRAIGHT_START && (distance - distance_amp_threshold) > STRAIGHT_CHANGE && amplitude > 0.0f)
        {
            amplitude -= 1.0f;
            distance_amp_threshold = distance;
        }
        // 20k–30k go to apex of curve
        else if (distance >= DIST_MAX_START && distance <= DIST_MAX_END && (distance - distance_amp_threshold) > MAX_CHANGE && amplitude < AMP_MAX_CAP)
        {
            amplitude += 1.0f;
            distance_amp_threshold = distance;
        }
        // 10k–20k we do a gentle curve
        else if (distance > DIST_MILD_START && distance <= DIST_MILD_END && (distance - distance_amp_threshold) > MILD_CHANGE && amplitude < AMP_MILD_CAP)
        {
            amplitude += 1.0f;
            distance_amp_threshold = distance;
        }

        // 70k - 80k do nothing

        // reset, start new lap
        if (distance > LAP_LENGTH)
        {
            distance = 0;
            distance_obstacle_tracker = distance;
            distance_amp_threshold = 0;
            laps += 1;
        }

        if (speed_up)
        {
            speed_duration -= 1;
            if (speed_duration == 0)
            {
                speed_up = false;
            }
        }

        if (invincible)
        {
            invincible_duration -= 1;
            if (invincible_duration == 0)
            {
                invincible = false;
            }
        }

        if (weather_duration > 0)
        {
            weather_duration -= 1;
            if (weather_duration == 0)
            {
                update_background = true;
                w = Morning;
            }
        }
        // 4) pause before next frame
        PT_YIELD_usec(50000); // ~20 Hz
    }

    PT_END(pt);
}

#define VGA_WIDTH 640
#define VGA_HEIGHT 480

static inline void drawPicture(short x, short y, const unsigned short *pic, short width, short height)
{

    for (short i = 0; i < height; i++)
    {
        for (short j = 0; j < width; j++)
        {
            short color = pic[i * width + j];
            if (color != 15)
            {
                drawPixel(x + j, y + i, color);
            }
        }
    }
}

static PT_THREAD(protothread_stats(struct pt *pt))
{

    // Indicate start of thread
    PT_BEGIN(pt);
    static uint64_t prev_acc_time = 0;
    static float prev_distance = -1;
    static int prev_lap = -1;

    static bool first_time = true;

    if (prev_acc_time == 0)
    {
        prev_acc_time = to_us_since_boot(get_absolute_time());
    }

    if (first_time)
    {
        fillRect(0, 0, 640, SKY_HEIGHT, LIGHT_BLUE);

        // Parameter labels
        setTextSize(1);
        setTextColor(WHITE);

        setCursor(10, 10);
        writeString("Time:");

        setCursor(10, 20);
        writeString("Laps:");
        setCursor(10, 30);
        writeString("Distance:");

        fillCircle(550, 40, 30, YELLOW);
        first_time = false;
    }

    while (1)
    {
        PT_SEM_SIGNAL(pt, &vga_sem);
        uint64_t prev_time = to_us_since_boot(get_absolute_time()) / 1000000;

        int new_distance = distance + racer.velocity;

        if (update_background)
        {
            switch (w)
            {
            case Morning:
                // draw sky as before
                fillRect(0, 0, 640, SKY_HEIGHT, LIGHT_BLUE);
                fillCircle(550, 40, 30, YELLOW);
                background_stats = LIGHT_BLUE;
                break;
            case Sunset:
                fillRect(0, 0, 640, SKY_HEIGHT, PINK);
                background_stats = PINK;
                fillCircle(320, 40, 30, ORANGE);
                break;
            case Night:
                fillRect(0, 0, 640, SKY_HEIGHT, BLUE);
                background_stats = BLUE;
                fillCircle(150, 40, 30, WHITE);
                break;
            }

            setTextColor2(WHITE, background_stats);
            setCursor(10, 10);
            writeString("Time:");
            setCursor(75, 10);
            sprintf(display_text, "%d", prev_time);
            writeString(display_text);

            setCursor(10, 20);
            writeString("Laps:");
            setCursor(75, 20);
            sprintf(display_text, "%d/3", laps);
            writeString(display_text);

            setCursor(10, 30);
            writeString("Distance:");
            setCursor(75, 30);
            sprintf(display_text, "%d", prev_time);
            writeString(display_text);

            update_background = false;
        }

        // Set text size
        if (distance != new_distance || update_background)
        {
            setCursor(75, 30);
            setTextColor2(WHITE, background_stats);
            sprintf(display_text, "%d", new_distance + (laps * LAP_LENGTH));
            writeString(display_text);

            distance = new_distance;
        }

        if (prev_time != time || update_background)
        {
            setCursor(75, 10);
            setTextColor2(WHITE, background_stats);
            sprintf(display_text, "%d", prev_time);
            writeString(display_text);

            time = (int)prev_time;
        }

        if (prev_lap != laps || update_background)
        {
            setCursor(75, 20);
            setTextColor2(WHITE, background_stats);
            sprintf(display_text, "%d/3", laps);
            writeString(display_text);

            prev_lap = laps;
        }

        if (laps >= 3)
        {
            // stop updating everything else and show victory
            show_win_screen();
            // lock up here so the screen stays
            while (gpio_get(BUTTON_PIN))
            {
                tight_loop_contents();
            }
        }

        // In protothread_stats function - pedal control implementation

        // Read brake pedal (left pedal - ADC1)
        adc_select_input(POT1_ADC_CH);
        uint16_t raw1 = adc_read();
        float p1_mm = (raw1 / 4095.0f) * POT1_MAX_MM;

        // Apply brake logic - if pedal is pushed (value less than 48)
        if (p1_mm < 48.0f)
        {
            uint64_t acc_time = to_us_since_boot(get_absolute_time());
            // Brake is being applied, gradually reduce velocity
            if (acc_time - prev_acc_time > 125000)
            {
                int new_velocity = racer.velocity - 1;
                if (new_velocity >= MIN_VELOCITY)
                {
                    racer.velocity = new_velocity;
                }
                else
                {
                    racer.velocity = MIN_VELOCITY; // Fully stopped
                }
                prev_acc_time = acc_time;
            }
        }
        // Define this static variable to retain value between calls
        static float filtered_p2_mm = 0.0f;

        // Choose alpha between 0.0f (very slow) and 1.0f (no filter); 0.1–0.3 is common
        const float alpha = 0.1f;

        adc_select_input(POT2_ADC_CH);
        uint16_t raw2 = adc_read();
        float p2_mm = (raw2 / 4095.0f) * POT2_MAX_MM;

        // Apply exponential moving average
        filtered_p2_mm = alpha * p2_mm + (1.0f - alpha) * filtered_p2_mm;

        // Apply accelerator logic - if pedal is pushed (value less than 45)
        if (filtered_p2_mm < 42.0f)
        {
            // Calculate how much the pedal is pushed (lower value = more acceleration)
            uint64_t acc_time = to_us_since_boot(get_absolute_time());

            // Don't accelerate if brake is being applied
            if ((p1_mm >= 48.0f) && (acc_time - prev_acc_time > 125000))
            {
                prev_acc_time = acc_time;
                int new_velocity = racer.velocity + 1;
                if (new_velocity <= MAX_VELOCITY)
                {
                    racer.velocity = new_velocity;
                }
                else
                {
                    racer.velocity = MAX_VELOCITY; // Cap at maximum velocity
                }
            }
        }

        // If neither pedal is pressed, gradually slow down (simulating coasting)
        if (p1_mm >= 49.0f && p2_mm >= 42.0f && racer.velocity > MIN_VELOCITY)
        {
            uint64_t acc_time = to_us_since_boot(get_absolute_time());
            if (acc_time - prev_acc_time > 3000000)
            {
                racer.velocity--;

                prev_acc_time = acc_time;
            }
        }

        PT_SEM_SIGNAL(pt, &vga_sem);

        PT_YIELD_usec(500);
    }
    PT_END(pt);
}

inline void powerUp(Objects *o)
{
    switch (o->p)
    {
    case Martha:
        printf("Martha is matched: change the background");
        if (w == Morning)
            w = Sunset;
        else if (w == Sunset)
            w = Night;
        else if (w == Night)
            w = Morning;
        update_background = true;
        weather_duration = 100;
        break;

    case Speed:
        printf("Speed is matched: increase velocity");
        speed_up = true;
        racer.velocity = MAX_VELOCITY;
        speed_duration = 500;
        break;

    case Invincible:
        printf("Invincible is matched: anything is possible!!!");
        racer.invincible = true;
        invincible = true;
        invincible_duration = 100;
        break;
    default:
        break;
    }
}

inline void bummpy(Objects *o)
{
    switch (o->o)
    {

    // In your collision handler
    case Cow:
        printf("Cow is matched: make the moo sound ");
        o->y -= 75;
        distance -= 5;
        break;

    case Bear:
        printf("Bear is matched: make a sad bear sound ");
        o->y -= 50;
        distance -= 10;
        break;

    case Banana:
        printf("Banana is matched: make a banana sound 'Slippery when peeled.'");
        o->y -= 15;
        distance -= 15;
        break;

    default:
        break;
    }
}

void draw_kart_sprite(int x, int y, int s)
{
    fillRect(x + 1 * s, y + 3 * s, 3 * s, 14 * s, WHITE);  // Left tire
    fillRect(x + 16 * s, y + 3 * s, 3 * s, 14 * s, WHITE); // Right tire
    fillRect(x + 4 * s, y + 2 * s, 12 * s, 16 * s, RED);
    fillRect(x + 6 * s, y + 2 * s, 8 * s, 2 * s, RED);
    fillRect(x + 6 * s, y + 16 * s, 8 * s, 2 * s, RED);
    fillRect(x + 6 * s, y + 5 * s, 8 * s, 3 * s, BLACK);
    fillRect(x + 6 * s, y + 8 * s, 8 * s, 3 * s, WHITE);
    fillRect(x + 6 * s, y + 11 * s, 8 * s, 3 * s, WHITE);
}

void erase_kart_sprite(int x, int y, int scale)
{
    fillRect(x, y, 21 * scale, 21 * scale, BLACK);
}

static PT_THREAD(protothread_vga(struct pt *pt))
{
    PT_BEGIN(pt);

    // fill whole play area with grass, not black
    // fill every pixel below the sky with grass:
    fillRect(0, SKY_HEIGHT,
             SCREEN_WIDTH, // 640
             VGA_HEIGHT - SKY_HEIGHT,
             GRASS_COLOR);

    drawPicture(RIGHT_TREE_X + 30, TREE_Y + 60, vga_image_tree, TREE_WIDTH, TREE_HEIGHT);

    while (1)
    {
        PT_SEM_WAIT(pt, &vga_sem);

        // 2) Redraw the road per scanline
        draw_dynamic_road(racer.x);

        drawPicture(LEFT_TREE_X, TREE_Y, vga_image_tree, TREE_WIDTH, TREE_HEIGHT);

        // 5) Update & draw active obstacles
        for (int i = 0; i < MAX_OBSTACLES; i++)
        {
            // Skip obstacle if not active
            if (!obstacles[i].active)
                continue;

            bool is_obstacle = obstacles[i].o != None;
            int object_type;
            if (is_obstacle)
            {
                object_type = obstacles[i].o;
            }
            else
            {
                object_type = obstacles[i].p;
            }

            // Erase obj from previous position if needed
            if (obstacles[i].needs_erase)
            {
                float prev_progression = (float)(obstacles[i].prev_y - SKY_HEIGHT) / (480.0f - SKY_HEIGHT);

                int prev_obj_width = obstacles[i].prev_scale * obstacles[i].width;
                int prev_obj_height = obstacles[i].prev_scale * 20;

                // Calculate the area to erase (obj's previous bounding box)
                float prev_obj_x = obstacles[i].x + prev_obj_width / 2;
                float scale = 0.2f + prev_progression * 2.0f;

                drawObject(prev_obj_x,
                           obstacles[i].y,
                           is_obstacle,
                           object_type,
                           obstacles[i].prev_scale, true);
            }

            // Save current position before updating
            obstacles[i].prev_x = obstacles[i].x;
            obstacles[i].prev_y = obstacles[i].y;
            obstacles[i].prev_scale = 0.2f + ((float)(obstacles[i].y - SKY_HEIGHT) / (480.0f - SKY_HEIGHT)) * 2.0f;
            obstacles[i].needs_erase = true;

            // Calculate road properties at this y position
            float progression = (float)(obstacles[i].y - SKY_HEIGHT) / (480.0f - SKY_HEIGHT);

            // Use the same perspective calculation as the road drawing
            float min_scale = 0.3f;
            float perspective_scale = min_scale + (1.0f - min_scale) * (progression * progression);

            // Calculate road width at this position - now using the wider base width
            int base_road_width = 450;
            int road_width = base_road_width * perspective_scale;

            // Calculate road curve at this position
            float curve = getRoadCurve((float)obstacles[i].y);

            // Calculate road edges
            int road_center = 320;
            int road_left = road_center - road_width / 2 - curve;
            int road_right = road_center + road_width / 2 - curve;

            // Move obstacle down the road
            obstacles[i].y += racer.velocity;

            // Apply some obstacle movement based on the road curve (less aggressive)
            obstacles[i].x += curve * 0.005f; // Reduced from 0.01f to 0.005f

            // Calculate obj size based on perspective
            float scale = 0.2f + progression * 2.0f;
            int obj_width = scale * obstacles[i].width;
            int obj_height = scale * obstacles[i].height;

            float usable_road_width = road_width * 0.4f;
            // Center point of usable road area
            float road_center_shifted = road_center - curve;
            // Calculate absolute boundaries
            float left_boundary = road_center_shifted - usable_road_width;
            float right_boundary = road_center_shifted + usable_road_width;

            // Keep obj center point within these boundaries with additional padding
            float padding = obj_width * 0.1f; // 10% padding

            float min_x = left_boundary + obj_width / 2 + padding;
            float max_x = right_boundary - obj_width / 2 - padding;

            // drawRect(left_boundary, obstacles[i].y, right_boundary - left_boundary, 5, BLUE);

            if (obstacles[i].x < min_x)
                obstacles[i].x = min_x;
            else if (obstacles[i].x > max_x)
                obstacles[i].x = max_x;

            // Calculate drawing position (cow's top-left corner)
            float obj_x = obstacles[i].x + obj_width / 2;

            // Check for collision with kart
            float obj_y = obstacles[i].y - obj_height;

            if (obstacles[i].y > 350 &&
                collision(obj_x, obj_width, obstacles[i].y, obj_height))
            {
                if (obstacles[i].p == Non)
                {
                    bummpy(&obstacles[i]);
                    // TODO: CHANGE THIS BACK TO MAX(0, RACER.VELOCITY - 2) AFTER WE ARE DONE DEBUGGING - ELIAS
                    racer.velocity = max(MIN_VELOCITY, min(0, MAX_VELOCITY));
                }
                else
                {
                    powerUp(&obstacles[i]);
                    obstacles[i].active = false;
                }

                continue;
            }

            // Remove obstacles that go off-screen
            if (obstacles[i].y > VGA_HEIGHT)
            {
                // now fully deactivate
                drawObject(
                    obstacles[i].prev_x,
                    obstacles[i].prev_y,
                    is_obstacle,
                    object_type,
                    obstacles[i].prev_scale, true);
                obstacles[i].active = false;
            }
            else
            {
                // drawRect(obj_x, obstacles[i].y, obj_width, obj_height, RED);
                drawObject(obj_x,
                           obstacles[i].y,
                           is_obstacle,
                           object_type,
                           scale, false);
            }
        }

        erase_kart_sprite(prev_kart_x, racer.y, 2);
        draw_kart_sprite(racer.x, racer.y, 2);
        for (int i = 0; i < NUM_FLOWERS; i++)
        {
            int fy = flowers[i].y;
            int fx = flowers[i].x;
            int left = prev_left_edges[fy];
            int right = prev_right_edges[fy];

            if (fx < left || fx > right)
            {
                int half = FLOWER_SIZE / 2;
                drawVLine(fx, fy - half, FLOWER_SIZE, flowers[i].color);
                drawHLine(fx - half, fy, FLOWER_SIZE, flowers[i].color);
            }
        }

        // remember for next frame
        prev_kart_x = racer.x;

        PT_SEM_SIGNAL(pt, &vga_sem);

        PT_YIELD_usec(25000);
    }

    PT_END(pt);
}

void write_dac(uint16_t data, uint16_t channel_bits)
{
    uint16_t dac_word = channel_bits | (data & 0x0FFF);
    gpio_put(PIN_CS, 0); // select the DAC
    spi_write16_blocking(SPI_PORT, &dac_word, 1);
    gpio_put(PIN_CS, 1); // deselect
    // now pulse LDAC to latch
    gpio_put(LDAC, 1);
    gpio_put(LDAC, 0);
}

static PT_THREAD(protothread_sfx(struct pt *pt))
{
    static int index = 0;
    PT_BEGIN(pt);

    while (1)
    {
        write_dac(sfx[index] & 0x0FFF, DAC_CONFIG_CHAN_A); // Output 12-bit sample
        index++;

        if (index >= sfx_len)
            index = 0; // Loop back to start

        PT_YIELD_usec(8); // ~44.1 kHz playback rate
    }

    PT_END(pt);
}

// Initializes SPI, DMA channels, and builds the sine table for DAC output.
void initSPI()
{
    // Initialize SPI channel (channel, baud rate set to 20MHz)
    spi_init(SPI_PORT, 20000000);

    // Format SPI channel (channel, data bits per transfer, polarity, phase, order)
    spi_set_format(SPI_PORT, 16, 0, 0, 0);

    // Map SPI signals to GPIO ports, acts like framed SPI with this CS mapping
    gpio_set_function(PIN_MISO, GPIO_FUNC_SPI);
    gpio_set_function(PIN_CS, GPIO_FUNC_SPI);
    gpio_set_function(PIN_SCK, GPIO_FUNC_SPI);
    gpio_set_function(PIN_MOSI, GPIO_FUNC_SPI);

    // Build sine table and DAC data table
    int i;
    for (i = 0; i < (SINE_TABLE_SIZE); i++)
    {
        raw_sin[i] = (int)(2047 * sin((float)i * 6.283 / (float)SINE_TABLE_SIZE) + 2047); // 12 bit
        DAC_data[i] = DAC_CONFIG_CHAN_A | (raw_sin[i] & 0x0fff);
    }

    // Select DMA channels
    data_channel = dma_claim_unused_channel(true);
    control_channel = dma_claim_unused_channel(true);

    // Setup the control channel
    dma_channel_config c = dma_channel_get_default_config(control_channel); // default configs
    channel_config_set_transfer_data_size(&c, DMA_SIZE_32);                 // 32-bit txfers
    channel_config_set_read_increment(&c, false);                           // no read incrementing
    channel_config_set_write_increment(&c, false);                          // no write incrementing
    channel_config_set_chain_to(&c, data_channel);                          // chain to data channel

    dma_channel_configure(
        control_channel,                     // Channel to be configured
        &c,                                  // The configuration we just created
        &dma_hw->ch[data_channel].read_addr, // Write address (data channel read address)
        &dac_data_pointer,                   // Read address (POINTER TO AN ADDRESS)
        1,                                   // Number of transfers
        false                                // Don't start immediately
    );

    // Setup the data channel
    dma_channel_config c2 = dma_channel_get_default_config(data_channel); // Default configs
    channel_config_set_transfer_data_size(&c2, DMA_SIZE_16);              // 16-bit txfers
    channel_config_set_read_increment(&c2, true);                         // yes read incrementing
    channel_config_set_write_increment(&c2, false);                       // no write incrementing

    // (X/Y)*sys_clk, where X is the first 16 bytes and Y is the second
    // sys_clk is 125 MHz unless changed in code. Configured to ~44 kHz
    dma_timer_set_fraction(0, 0x0017, 0xffff);

    // 0x3b means timer0 (see SDK manual)
    channel_config_set_dreq(&c2, 0x3b); // DREQ paced by timer 0

    // chain to the controller DMA channel
    dma_channel_configure(
        data_channel,              // Channel to be configured
        &c2,                       // The configuration we just created
        &spi_get_hw(SPI_PORT)->dr, // write address (SPI data register)
        DAC_data,                  // The initial read address
        SINE_TABLE_SIZE,           // Number of transfers
        false                      // Don't start immediately.
    );
}

void core1_entry()
{
    pt_add_thread(protothread_vga);
    pt_add_thread(protothread_stats);
    pt_add_thread(protothread_background);
    pt_schedule_start;
}

int main()
{
    stdio_init_all();
    initVGA();
    i2c_init(I2C_CHAN, I2C_BAUD_RATE);
    gpio_set_function(SDA_PIN, GPIO_FUNC_I2C);
    gpio_set_function(SCL_PIN, GPIO_FUNC_I2C);
    gpio_set_function(5, GPIO_FUNC_PWM);
    gpio_set_function(4, GPIO_FUNC_PWM);
    pwm_slice = pwm_gpio_to_slice_num(5);

    pwm_clear_irq(pwm_slice);
    pwm_set_irq_enabled(pwm_slice, true);
    irq_set_exclusive_handler(PWM_IRQ_WRAP, on_pwm_wrap);
    irq_set_enabled(PWM_IRQ_WRAP, true);
    pwm_set_wrap(pwm_slice, WRAPVAL);
    pwm_set_clkdiv(pwm_slice, CLKDIV);
    pwm_set_chan_level(pwm_slice, PWM_CHAN_B, 0);
    pwm_set_chan_level(pwm_slice, PWM_CHAN_A, 0);
    pwm_set_mask_enabled((1u << pwm_slice));
    pwm_set_output_polarity(pwm_slice, 1, 0);

    // Setup GPIOs for other peripherals
    gpio_init(10);
    gpio_set_dir(10, GPIO_OUT);
    gpio_put(10, 1);

    gpio_init(13);
    gpio_set_dir(13, GPIO_IN);

    adc_init();
    adc_gpio_init(26);
    adc_select_input(0);
    adc_gpio_init(27); // ADC1 on GPIO27
    adc_gpio_init(28); // ADC2 on GPIO28

    int height = 480;
    int width = 640;
    for (short i = 0; i < height; i++)
    {
        for (short j = 0; j < width; j++)
        {
            uint8_t index = vga_image_intro[i * width + j] & 0x0F;
            drawPixel(j, i, index);
        }
    }

    initSPI();

    gpio_init(BUTTON_PIN);
    gpio_set_dir(BUTTON_PIN, GPIO_IN);
    gpio_pull_up(BUTTON_PIN);

    sleep_ms(10);
    while (gpio_get(BUTTON_PIN))
    {
        distance = 0;
        time = 0;
    };

    multicore_reset_core1();
    multicore_launch_core1(core1_entry);

    pt_add_thread(protothread_sfx);
    pt_schedule_start;
}


character.c

#include "character.h"
#include  // for ceilf()

// You need to provide these somewhere in your project
extern void fillRect(int x, int y, int w, int h, uint16_t color);
extern void drawPixel(int x, int y, uint16_t color);

// --- Cloud bitmask data ---
const uint16_t cloud_mask[CLOUD_HEIGHT] = {
    0b0000011111000000,
    0b0001111111100000,
    0b0011111111110000,
    0b0111111111111000,
    0b0011111111110000,
    0b0001111111100000,
    0b0000011111000000,
    0b0000000110000000,
};

// --- Draw scaled cloud ---
void draw_cloud_bitmask_scaled(int x, int y, uint16_t color, float ratio)
{
    for (int row = 0; row < CLOUD_HEIGHT; row++)
    {
        uint16_t line = cloud_mask[row];
        for (int col = 0; col < CLOUD_WIDTH; col++)
        {
            if (line & ((uint16_t)1 << (15 - col)))
            {
                int px_start = x + (int)(col * ratio);
                int py_start = y + (int)(row * ratio);
                int pixel_size = (int)ceilf(ratio);
                fillRect(px_start, py_start, pixel_size, pixel_size, color);
            }
        }
    }
}

// --- bear bitmask data ---
const uint64_t cow_mask[COW_HEIGHT] = {
    0b0001000010000000000000000000000000000000000000000000000000000000,
    0b0000111110000000000000000000000000000000000000000000000000000000,
    0b0001111111000000000000000000000000001111100000000000000000000000,
    0b0011111111111111111111111111111111111111000000000000000000000000,
    0b0111111111111111111111111111111111111111100000000000000000000000,
    0b1111111111111111111111111111111111111111100000000000000000000000,
    0b1111111111111111111111111111111111111111100000000000000000000000,
    0b1100011111111111111111111111111111111111100000000000000000000000,
    0b0000011111111111111111111111111111111111100000000000000000000000,
    0b0000001111111111111111111111111111111111100000000000000000000000,
    0b0000001111111111111111111111111111111111100000000000000000000000,
    0b0000000111111111111111111111111111111111100000000000000000000000,
    0b0000000111111111111111111111111111111111100000000000000000000000,
    0b0000000011111111111111111111111111111111100000000000000000000000,
    0b0000000000011110000000000011111111111110000000000000000000000000,
    0b0000000000011110000000000000001101100000000000000000000000000000,
    0b0000000000011010000000000000001001100000000000000000000000000000,
    0b0000000000011010000000000000011001100000000000000000000000000000,
    0b0000000000011010000000000000110001100000000000000000000000000000,
    0b0000000000110110000000000000110011000000000000000000000000000000,
};

// --- Draw scaled cow ---
void draw_cow_bitmask_scaled(int x, int y, uint16_t color, float ratio)
{
    for (int row = 0; row < COW_HEIGHT; row++)
    {
        uint64_t line = cow_mask[row];
        for (int col = 0; col < COW_WIDTH; col++)
        {
            if (line & ((uint64_t)1 << (63 - col)))
            {
                int scaled_x_start = x + (int)(col * ratio);
                int scaled_y_start = y + (int)(row * ratio);
                int scaled_pixel_size = (int)ceilf(ratio);
                fillRect(scaled_x_start, scaled_y_start, scaled_pixel_size, scaled_pixel_size, color);
            }
        }
    }
}

const uint64_t bear_mask[BEAR_HEIGHT] = {
    0b0000000000000000000000110000000110000000000000000000000000000,
    0b0000000000000000000001111000001110000000000000000000000000000,
    0b0000000000000000000001111111111110000000000000000000000000000,
    0b0000000000000000000000111111111110000000000000000000000000000,
    0b0000000000000000000001111111111110000000000000000000000000000,
    0b0000000000000000000011111111111110000000000000000000000000000,
    0b0000000000000000001111111111111111000000000000000000000000000,
    0b0000001111111111111111111111111111000000000000000000000000000,
    0b0000011111111111111111111111111111000000000000000000000000000,
    0b0000111111111111111111111111111111000000000000000000000000000,
    0b0001111111111111111111111111111111000000000000000000000000000,
    0b0001111111111111111111111111111110000000000000000000000000000,
    0b0011111111111111111111111111111110000000000000000000000000000,
    0b0011111111111111111111111111111000000000000000000000000000000,
    0b0111111111111111111111111111110000000000000000000000000000000,
    0b0111111111111111111111111111110000000000000000000000000000000,
    0b1111111111111111111111111111110000000000000000000000000000000,
    0b1111111111111111111111111111110000000000000000000000000000000,
    0b1111111111111111111111111111100000000000000000000000000000000,
    0b1111111111111111111111111111100000000000000000000000000000000,
    0b1111111111111111111111111111000000000000000000000000000000000,
    0b1111111111111111111111111111000000000000000000000000000000000,
    0b0111111111111111111110111111000000000000000000000000000000000,
    0b0111111111111111111100111110000000000000000000000000000000000,
    0b0111111111111011111100111110000000000000000000000000000000000,
    0b0111111111111001111100111110000000000000000000000000000000000,
    0b0011111011111001111100111100000000000000000000000000000000000,
    0b0011111011111001111100111100000000000000000000000000000000000,
    0b0011111011111101111100111110000000000000000000000000000000000,
    0b0001111111111101111110111111000000000000000000000000000000000,
    0b0001111110000000111111011111000000000000000000000000000000000,
};

void draw_bear_bitmask_scaled(int x, int y, uint16_t color, float ratio)
{
    for (int row = 0; row < BEAR_HEIGHT; row++)
    {
        uint64_t line = bear_mask[row];
        for (int col = 0; col < BEAR_WIDTH; col++)
        {
            if (line & ((uint64_t)1 << (63 - col)))
            {
                int scaled_x_start = x + (int)(col * ratio);
                int scaled_y_start = y + (int)(row * ratio);
                int scaled_pixel_size = (int)ceilf(ratio);
                fillRect(scaled_x_start, scaled_y_start, scaled_pixel_size, scaled_pixel_size, color);
            }
        }
    }
}

// --Banana bitmask data-- -
const uint64_t banana_mask[BANANA_HEIGHT] = {
    0b0000000000000001100000000000000000000000000000000000000000000,
    0b0000000000000001111000000000000000000000000000000000000000000,
    0b0000000000000001111000000000000000000000000000000000000000000,
    0b0000000000000001111000000000000000000000000000000000000000000,
    0b0000000000000111110000000000000000000000000000000000000000000,
    0b0000000000001111111000000000000000000000000000000000000000000,
    0b0000000000001111111100000000000000000000000000000000000000000,
    0b0000000000011111111100000000000000000000000000000000000000000,
    0b0000000000011111111100000000000000000000000000000000000000000,
    0b0000000000111111111100000000000000000000000000000000000000000,
    0b0001111111111111111100000000000000000000000000000000000000000,
    0b0011111111111111111111111110000000000000000000000000000000000,
    0b0011111111111111111111111110000000000000000000000000000000000,
    0b0001111111111111111111111110000000000000000000000000000000000,
    0b0000111111111111111111111100000000000000000000000000000000000,
    0b0011111111111110111111111000000000000000000000000000000000000,
    0b1111111111111100111111111111000000000000000000000000000000000,
    0b1111111111111000011111111111000000000000000000000000000000000,
    0b1111111111100000000111111111000000000000000000000000000000000,
    0b0011111100000000000001111110000000000000000000000000000000000,
};

// --- Draw scaled banana ---
void draw_banana_bitmask_scaled(int x, int y, uint16_t color, float ratio)
{
    for (int row = 0; row < BANANA_HEIGHT; row++)
    {
        uint64_t line = banana_mask[row];
        for (int col = 0; col < BANANA_WIDTH; col++)
        {
            if (line & ((uint64_t)1 << (63 - col)))
            {
                int scaled_x_start = x + (int)(col * ratio);
                int scaled_y_start = y + (int)(row * ratio);
                int scaled_pixel_size = (int)ceilf(ratio);
                fillRect(scaled_x_start, scaled_y_start, scaled_pixel_size, scaled_pixel_size, color);
            }
        }
    }
}

const uint64_t dragon_mask[DRAGON_HEIGHT] = {
    0b000000000000000000000000001000111000000000000000000000000000,
    0b000000000000000000000000011100010100000000000000000000000000,
    0b000000000000000000000000010100011110000000000000000000000000,
    0b000000000000000000000000011110011110000000000000000000000000,
    0b000000000000000000000000010010011111000000000000000000000000,
    0b000000000000000000000000011111111111111000000000000000000000,
    0b000000000000000000000000011101111111111110000000000000000000,
    0b000000000000000000000000011111111111111111000000000000000000,
    0b000000000000000000000000001111111111111111100000000000000000,
    0b000000000000000000000000001111111111111111100000000000000000,
    0b000000001100000000000000011111111111111111110000000000000000,
    0b000000011100001111000000011111111111111111110000000000000000,
    0b000000111100001111110000011111111111111111110000000000000000,
    0b000001111100000111111100011111111111111111110000000000000000,
    0b000011111000000111111110011111111111111111111000000000000000,
    0b000011111000000111111110111111111111111111111100000000000000,
    0b000111111001111111111110111111111111111111111110000000000000,
    0b000111111111111111111110111111111111111111111110000000000000,
    0b000111111011000011111110111111111111111111111110000000000000,
    0b001011111000100001111110111111111111111111111110000000000000,
    0b001111111100010001111111111111111111111111111100000000000000,
    0b001111111100010010001111111111111111111111111000000000000000,
    0b001011111110001000001111111111111110111111000000000000000000,
    0b001011111111001000001111111111111110000000000000000000000000,
    0b001111111111111111101111111111111110000000000000000000000000,
    0b001111111111111111111111111111111110000000000000000000000000,
    0b000111111111111111111111111111111111100000000000000000000000,
    0b000111111111111111111111111111111111110000000000000000000000,
    0b000111111111111111111111111111111111111000000000000000000000,
    0b000011111111111111111111111111111111111000000000000000000000,
    0b000011111111111111111111111111111111111000000000000000000000,
    0b000011111111111111111111111111111111111100000000000000000000,
    0b000111111111111111111111111111111111111100000000000000000000,
    0b000111111111111111111111111111111111111000000000000000000000,
    0b001111111111111111111111111111111110100000000000000000000000,
    0b011111111111111111111111111101111110000000000000000000000000,
    0b011100111111111111111111110001111100000000000000000000000000,
    0b011000111111111111111110000000000000000000000000000000000000,
    0b000000111001111000000000000000000000000000000000000000000000,
    0b000000110000000000000000000000000000000000000000000000000000,
};
// --- Draw scaled cloud ---
void draw_dragon_bitmask_scaled(int x, int y, uint16_t color, float ratio)
{
    for (int row = 0; row < DRAGON_HEIGHT; row++)
    {
        uint64_t line = dragon_mask[row];
        for (int col = 0; col < DRAGON_WIDTH; col++)
        {
            if (line & ((uint64_t)1 << (63 - col)))
            {
                int scaled_x_start = x + (int)(col * ratio);
                int scaled_y_start = y + (int)(row * ratio);
                int scaled_pixel_size = (int)ceilf(ratio);
                fillRect(scaled_x_start, scaled_y_start, scaled_pixel_size, scaled_pixel_size, color);
            }
        }
    }
}

const uint64_t pumpkin_mask[PUMPKIN_HEIGHT] = {
    0b000000000000111100000000000000000000000000000000000000000000,
    0b000000000000111100000000000000000000000000000000000000000000,
    0b000000000000111110100000000000000000000000000000000000000000,
    0b000000000000111111111100000000000000000000000000000000000000,
    0b000000000011111111111100000000000000000000000000000000000000,
    0b000001111111111111111100000000000000000000000000000000000000,
    0b000011111111111111111111000000000000000000000000000000000000,
    0b000111111111111111111111100000000000000000000000000000000000,
    0b001111111111111111111111100000000000000000000000000000000000,
    0b011111111111111111111111110000000000000000000000000000000000,
    0b011111111111111111111111110000000000000000000000000000000000,
    0b011111111111111111111111111000000000000000000000000000000000,
    0b011111111111111111111111111000000000000000000000000000000000,
    0b111111111111111111111111111000000000000000000000000000000000,
    0b011111111111111111111111111000000000000000000000000000000000,
    0b011111111111111111111111111000000000000000000000000000000000,
    0b011111111111111111111111110000000000000000000000000000000000,
    0b011111111111111111111111110000000000000000000000000000000000,
    0b001111111111111111111111110000000000000000000000000000000000,
    0b000111111111111111111111100000000000000000000000000000000000,
    0b000011111111111111111111000000000000000000000000000000000000,
    0b000000011111111111111100000000000000000000000000000000000000,
};

// --- Draw scaled cloud ---
void draw_pumpkin_bitmask_scaled(int x, int y, uint16_t color, float ratio)
{
    for (int row = 0; row < PUMPKIN_HEIGHT; row++)
    {
        uint64_t line = pumpkin_mask[row];
        for (int col = 0; col < PUMPKIN_WIDTH; col++)
        {
            if (line & ((uint64_t)1 << (63 - col)))
            {
                int scaled_x_start = x + (int)(col * ratio);
                int scaled_y_start = y + (int)(row * ratio);
                int scaled_pixel_size = (int)ceilf(ratio);
                fillRect(scaled_x_start, scaled_y_start, scaled_pixel_size, scaled_pixel_size, color);
            }
        }
    }
}

const uint64_t bell_mask[BELL_HEIGHT] = {
    0b000011000000000000000000000000000000000000000000000000000000,
    0b000111100000000000000000000000000000000000000000000000000000,
    0b001111110000000000000000000000000000000000000000000000000000,
    0b001111111000000000000000000000000000000000000000000000000000,
    0b011111111000000000000000000000000000000000000000000000000000,
    0b011111111000000000000000000000000000000000000000000000000000,
    0b011111111000000000000000000000000000000000000000000000000000,
    0b011111111000000000000000000000000000000000000000000000000000,
    0b011111111000000000000000000000000000000000000000000000000000,
    0b111111111100000000000000000000000000000000000000000000000000,
    0b111111111100000000000000000000000000000000000000000000000000,
    0b000011000000000000000000000000000000000000000000000000000000,
};

// --- Draw scaled cloud ---
void draw_bell_bitmask_scaled(int x, int y, uint16_t color, float ratio)
{
    for (int row = 0; row < BELL_HEIGHT; row++)
    {
        uint64_t line = bell_mask[row];
        for (int col = 0; col < BELL_WIDTH; col++)
        {
            if (line & ((uint64_t)1 << (63 - col)))
            {
                int scaled_x_start = x + (int)(col * ratio);
                int scaled_y_start = y + (int)(row * ratio);
                int scaled_pixel_size = (int)ceilf(ratio);
                fillRect(scaled_x_start, scaled_y_start, scaled_pixel_size, scaled_pixel_size, color);
            }
        }
    }
}
