By: Asma Ansari (ara89), Fiona Rae (fmr35), Emmy Yancey (mdy9)
Introduction
Nature's mental health benefits inspired us to develop a video game where the player can grow their own plant. We wanted to replicate the peaceful, and even meditative, experience of interacting with nature. This led us to consider what factors impact a plant's growth, such as sunlight, water, and fertilizer. Additionally, if a plant is under the care of a person, that person wields a significant influence on the plant's health.
In our game, we gradually animate the growth of a plant over time as the player adjusts the sun's position and intensity and provides rain and fertilizer at desired intervals to the plant. The end result is a beautiful cherry blossom tree reminiscent of real trees on Cornell University's campus. Ultimately, the game encourages the player to be focused through fostering the plant while providing a visually-appealing and calming "environment" for the player to take a break from studying or work.
High-Level Design
Sources
Since our project involves simulating "organic" growth patterns, we researched fractal generation. The class repository includes some fractal-based projects, such as the Barnsley Fern, which were relevant to our project's final animation. Additionally, Hung Wen-Chen, a Computer Science student at Cornell University, developed a plant generator using L-Systems for computer graphics purposes. This provided additional direction for how to implement a system that can progressively "grow" a plant and have the user's input actually impact the plant's growth.
To further enhance our game interface, we attempted to incorporate a real GameCube controller for the user to interact with the plant. Thus, we found a driver that maps the GameCube controller's buttons and toggles to a USB driver. We ultimately chose to simplify our user interface, but this was a significant part of our initial design.
All of the resources mentioned in this section as cited appropriately in the Appendix under "References". These include any and all fractal generation code we took inspiration from as well as research papers with pseudocode that allowed us to develop our own design.
Structure
We structured our project such that we utilized minimal hardware components and based our software primarily on the course's demo code. The Pico microcontroller, VGA display, and several buttons and potentiometers for our user interface and running our program. We based our code in the VGA Animation demo code as well as pseudocode describing generating a plant in Python using L-System. This structure not only makes our project more accessible and reproducible, but it also challenges us to cleverly make use of limited resources (memory, ADC inputs/outputs, etc.).
In addition to programming the Pico in C, we chose to use Python to validate the logic of both the L-System's animation and alternative methods. This was especially crucial for parallel programming because we still had to implement our user interface before we could validate our animation on the VGA display. Therefore, we used Turtle Graphics in Python to illustrate our animation code on our individual computers before rewriting the code in C and combining it with the VGA Animation code.

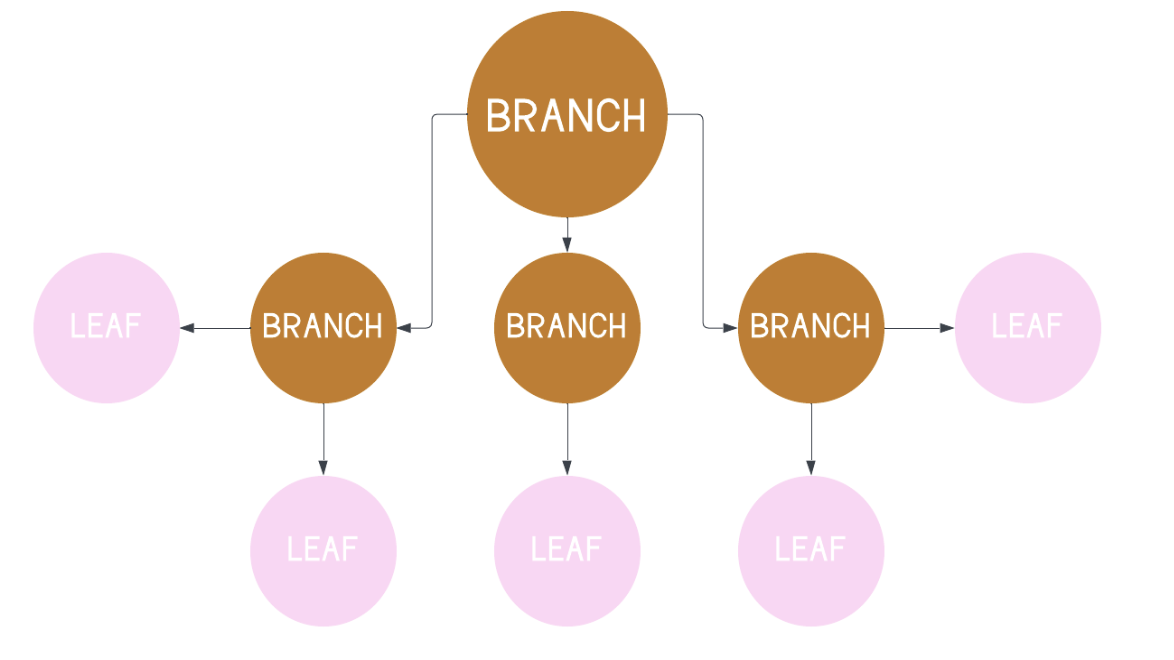

Figure 1. Node-based tree generation organized in a generic tree structure.
As mentioned earlier, nature contains countless examples of fractals, such as snowflakes, rivers, and even plants! Therefore, we initially used an L-System, a mathematical system that can generate fractals, to model our tree's growth in the video game. However, this system was too deterministic, so we switched to a generic tree structure where each branch or leaf is represented by a node.
This node-based design allowed us greater control over how a node is generated. The player can adjust the water level, fertilizer level, sun's position, sun's intensity, and plant's natural tilt which affects the plant's size, growth rate, and growth direction. Thus, a node can be generated or updated based on these factors in real-time whereas the L-System only allows a "node" to be generated based on a discrete command.
Design
Hardware
The hardware consists of only the VGA display and the 5 input channels determined by the player. Two of these inputs are pull-down resistor GPIO ports that are set with a button. These buttons toggle whether the game enters the fertilizing and watering states. The other three pins correspond to the pico's 3 ADC channels and determine the values of Sun position, sun intensity, and plant angle. These channels linearly map the range of 0V - 3.3V to an integer range of [0, 4095]. Notably, this range is larger than the VGA's x-array zsize of 640. As a result, the high resolution of these channels allows for manipulation of the sun object at the VGA pixel level, which yields a smooth animation upon adjusting the potentiometers.

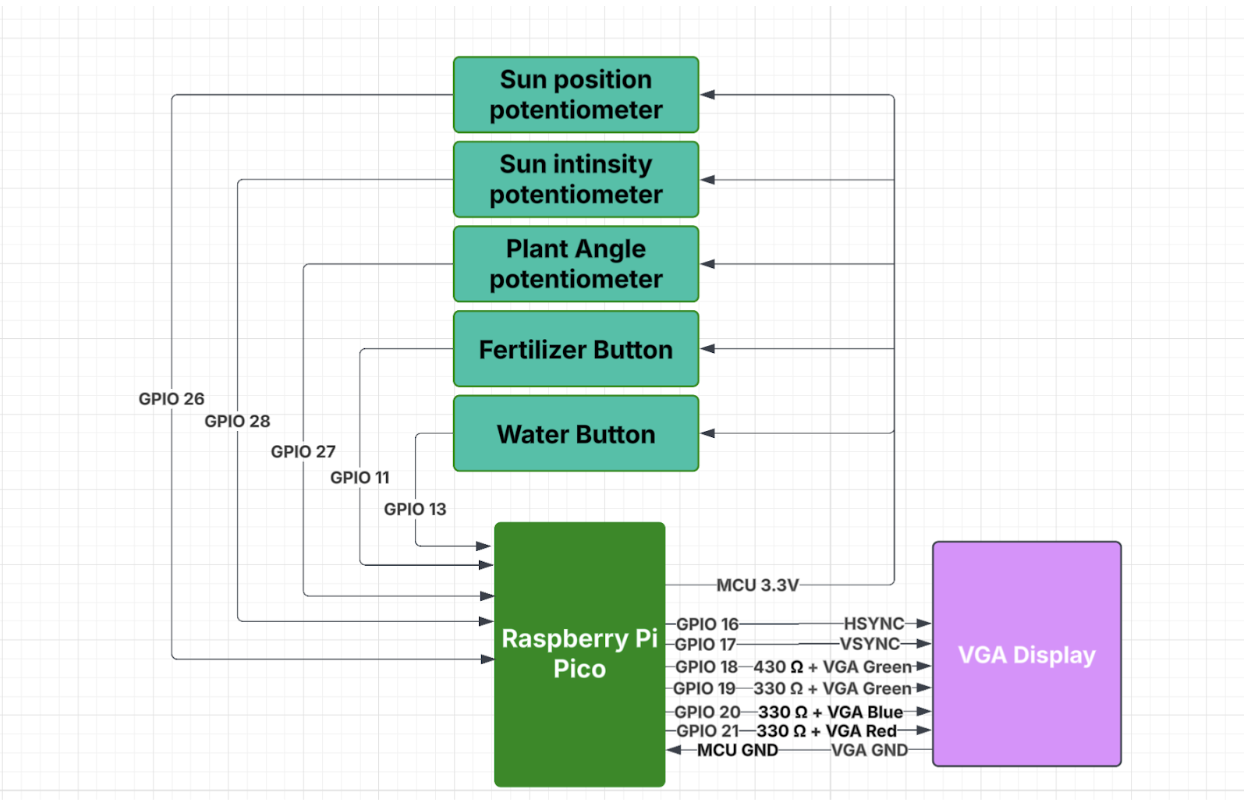

Figure 2. Hardware diagram showing connections between the Raspberry Pi Pico, buttons, potentiometers, and VGA display.
Software
VGA Display
The VGA Animation demo code from the course's repository guided our video game's development. Our objective was to refactor this demo code such that we combine concepts from our previous labs and build upon them with a unique implementation. On the VGA display, we wanted to display a histogram, text, and dynamic objects, similar to the Digital Galton Board lab. However, compared to that lab, ours required less physics and more tuning once the mathematical basis was set up, similar to the PID Controller lab.
Before attempting to implement the L-System code into C, we used Python Turtle Graphics to iterate on our animation design. As mentioned in "High-Level Design", we did animate a tree using L-System, but the output was too deterministic. Since the L-System design was recursive, that gave us the idea to switch over to a generic tree structure which is also traversed recursively.

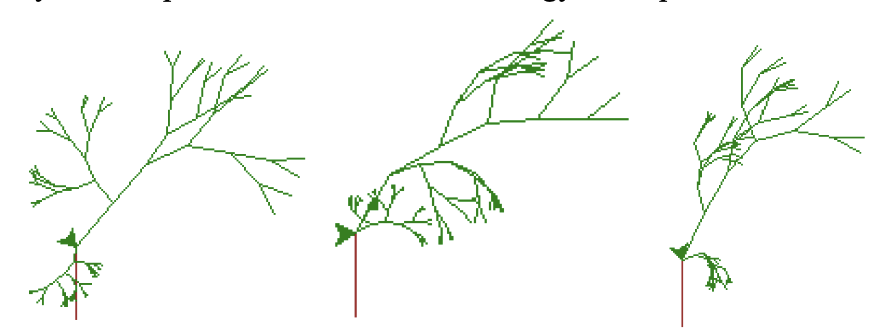

Figure 3. Three iterations of the L-System animation in Python.

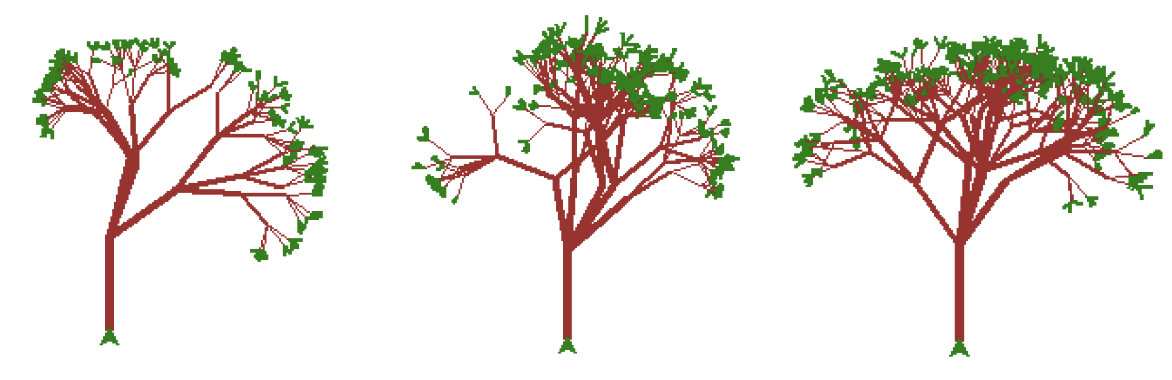

Figure 4. Three iterations of node-based animation in Python.
A key difference between the two animation styles is the randomness of the designs. The L-System design resulted in the first "branch" tilting to the right with some level of randomness in direction after that. The node-based animation allowed us to generate more variance in the direction of growth, and we also adjusted the "thickness" of each branch throughout the animation based on the depth of recursion (lower depths means newer branches which are thinner).
We refactored the node-based Python code into C which allowed us to statically generate a tree on the VGA display when the program started running. Initially, the program would take a random number to generate the tree as per the Python code's specification so we updated this to where the tree's growth is not just random. We incorporated the parameters into the growth and direction calculations for each branch or leaf.
The other major animation task was the rain and fertilizer falling. We wanted these to as closely appear as rain or fertilizer falling as possible. Therefore, we incorporated a bit of real world physics. Once rain has reached nearly the ground, it has also roughly reached temrinal veloctiy. Therefore the rain falls at a constant rate. However, the fertilizer should not be at terminal velocity if it is just dropped. Therefore, each fertilizer piece starts with a random velocity, and they all accelerate with gravity. This led to fertilizer and rain which looked realistic.
Parameter Tuning
Due to the limited number of ADC channels that the Pico had, we were unable to implement the wind parameters into our design. We needed to use all 3 of these channels and a few digital parameters to fully implement a properly animated plant. The parameters we included were plant tilt, water, fertilizer, and sunlight direction, as well as position. The water and fertilizer are each controlled by digital buttons connected to pull-down resistors. The remaining parameters each correspond to the ADC channels on the pico.
Thus, the end result is a tree starting out with only one stem that grows until it generates a variable number of branches. From there, the branches grow until it either generates more branches or generates a leaf which automatically terminates growth. Adding fertilizer speeds up the growth of the branches while adding water increases the length of the branches but not leaves. Therefore, adding water and fertilizer at key intervals can change the shape of the tree.
Furthermore, the sun's position and intensity impact how strongly the plant grows towards the sun where the sun's position determines growth direction while intensity is actual probability that the plant will grow towards that direction. The plant's tilt also influences the plant's direction of growth, so the impact of the sun as well as the plant's set tilt oppose each other depending on the sun's intensity.
The Sun position parameter is shown via its visual location on the VGA display. The tilt has no graphic representation. The rest of the parameters are represented via a histogram. Each parameter has a value on a scale of 0-100. The fertilizer and water parameters increase when their corresponding buttons are pressed. The state of the given parameter changes to allow to the value to increase over time. When the button is released, the value of the given parameter will slowly decay until zero. Note that fertilizer increases at a faster rate than water when its button is pressed. The sun intensity is also represented as a bar in the histogram. This value is not a direct mapping of the sun intensity ADC channel, but the evolution of the bar value is influenced by the current integer value of the channel. There is a band in the middle of the ADC channel values for which the intensity bar does not change. Above this, the value increases at a constant rate, and below this, it decreases at the same rate. Note that the decay rate of all values is the same.
Memory
Storing the VGA display's pixel data takes up more than half of the Pico's memory on its own, so this was another hardware limitation we faced. Recursive calls take up significant amounts of memory in the stack, and with extremely limited memory, dynamic memory allocation usually results in memory fragmentation. Thus, we had to incorporate a memory pool design in which we generate all of the nodes at the start of the program and assign those nodes to specific parts of our animated plant.
We initialized two arrays, one holding all of the nodes and one which kept track of which nodes were being utilized. After implementing this into our animation code, we experimented with different array sizes for the number of allocated nodes. We chose to keep the number of nodes under 2000 because the actual tree animation still looked reminiscent of a real cherry blossom tree and it preserved some memory for other recursive processes.
Results
Our primary objective was to illustrate a realistic and aesthetically pleasing plant. We wanted the game's end result to be meditative without being boring. We feel that we achieved this through our carefully thought out gameplay mechanics and animation methodology.
Each run of the game produces a different tree due to both the user's input and the small element of randomness while still resulting in a realistic, beautiful tree. As described earlier, we simulated how a real-life tree would grow where the largest branch would be the stem followed by each successive branch. Finally, each tree reaches the end of its growth once all branches reach a leaf which is colored pink to mimic the cherry blossom tree, as can be seen below.
Figure 5. Two cherry blossom trees that are comparable to the game's end result.

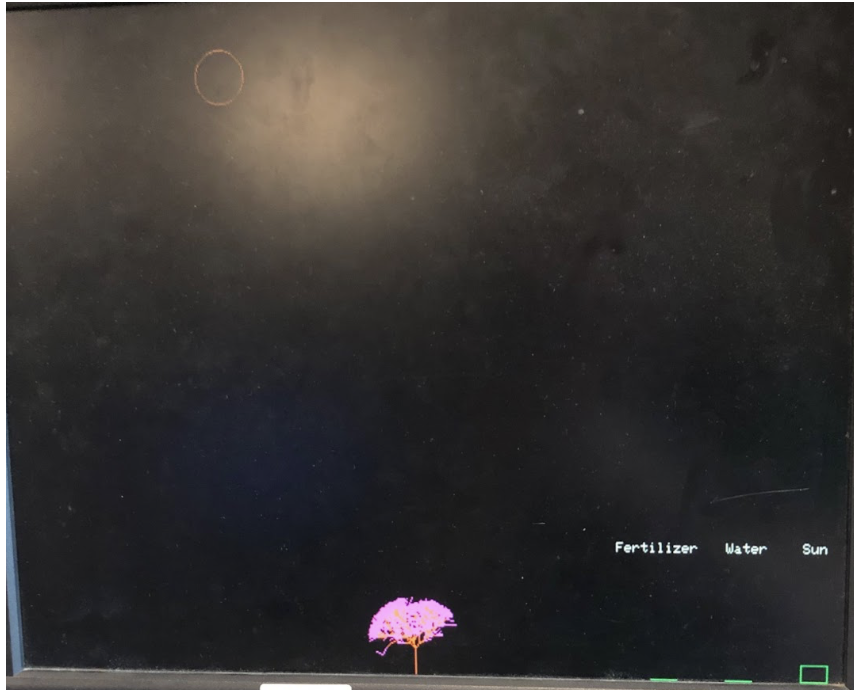

Figure 6. Tree with Left Tree Tilt, Minimum Sun Intensity, and No Water.
Next, we slowed down the tree's growth significantly to ensure that users can set the pace of gameplay. This also allowed the user to play around with each of the buttons and potentiometers to change the tree's final look. The user could also continuously add fertilizer to speed up the tree's growth rate, but otherwise, the user can allow the tree to grow on its own for the end result illustrated in Figure 6. As illustrated above, the lack of water resulted in very small tree branches and a "fuller" looking tree with a slight left tilt. The tilt in this case is not due to the sun's position but rather the plant tilt parameter being set to the left.

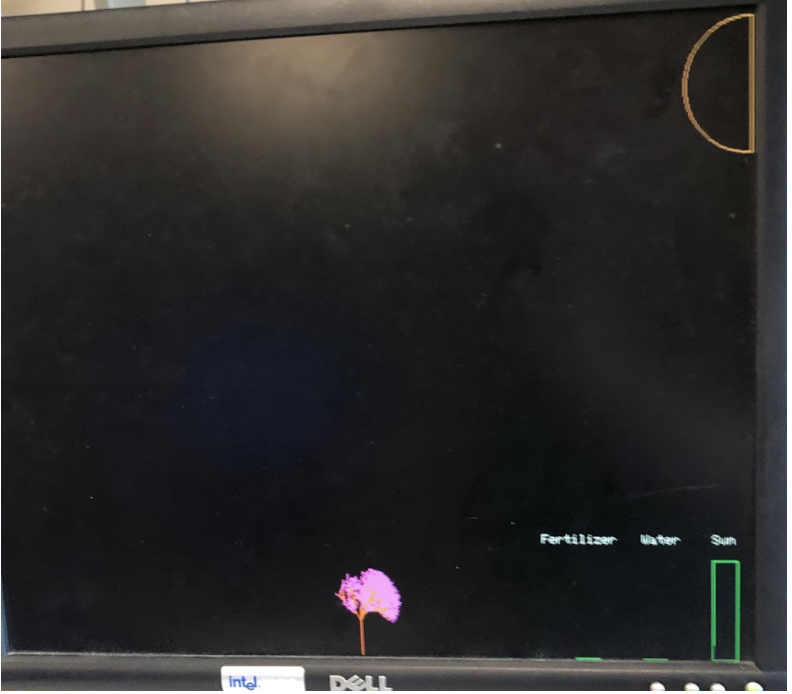

Figure 7. Tree with Left Tree Tilt, Maximum Sun Intensity to the Right, and No Water.
When sun intensity was at its maximum, the tree tilt had no effect on the growth of the tree and it grew entirely towards the sun as seen in Figure 7. Despite the tree tilt being to the left, the tree is growing to the right due to the very high sun intensity. Still, without any water, the tree branches are quite small.

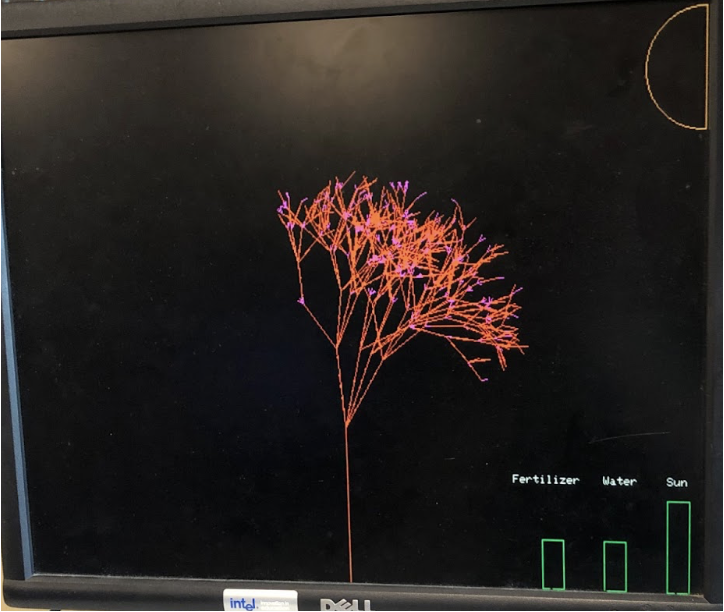

Figure 8. Tree with Left Tree Tilt, Maximum Sun Intensity to the Right, and Maximum Water.
Finally, adding the maximum amount of water significantly impacted the final tree's look. We maintained the same conditions as Figure 7, but we continuously added more water until the water levels remained consistently high until the tree finished growing. Comparing the previous two trees to this third one indicates that water and sunlight drastically impact the final look of the tree. Overall, we achieved our goal of designing a meditative, interactive, and aesthetically pleasing video game.
Execution
Since we wanted our game to have a meditative effect, we ensured that our game did not progress too quickly. Initially, we verified our tree generation logic by statically animating the full tree once. We iterated on this by illustrating the branches growing longer and randomly generating a leaf to end growth on that particular branch. Our end result mimicked the growth of a real cherry blossom tree as it begins to bloom in early Spring.
To compensate for this, we also wanted any actions by the user to have an effect on the game. Therefore, changes made by the user needed to have an immediate effect on the game. This meant that when a button was pushed or a potentiometer was turned, this should be taken into the game in a way that the human brain perceives it to be instantly. We did not have quantitative timing constraints, just the qualitative timing constraint that the player should perceive effects as immediate. This was met easily, when the rain or fertilizer buttons were pushed, each respectively immediately began falling, and the histogram began increasing. When the sun dials were changed, similarly, the sun on the screen would move and the histogram would change as necessary. Additionally, each of these factors had an effect on the tree as it slowly grew. These decisions make the game interesting while still being meditative and slow.
The only dial that did not have a perceivable immediate effect was the plant tilt potentiometer. Because this only affected parameters in the shape and direction of the tree, it was not something that had an immediate visible impact. However, over time, the user could see this change. This still met our requirements, however, as we intended for this to have less visibility than the other changes. An effect of this decision is that it, possibly, makes this parameter a bit less interesting to the user as it is not easy to perceive it as having any effect on the tree unless the user runs the game several times with several different settings for this.
Accuracy
We had very little quantitative expectations for our game, as our focus was on the aesthetics. One note on accuracy was that the sun size and position often flickered more than originally intended. This was, primarily, due to the noise on the potentiometer. While we attempted to fix this by checking that the change in values from the potentiometer exceeded a minimum value, there was still some flicker. There was a limit to the amount we could set, because we still wanted the sun to move across the sky and change size smoothly. We accepted this slight flicker on occasion over jumping positions.
Safety
We have no obvious safety concerns. The project uses low-voltage components (5V or less) that pose minimal risk to users. Standard precautions for handling electronic components apply.
Usability
The user interface consists of three buttons and three potentiometers which is relatively straightforward. Our controls are rather simple and most have visible and immediate effects on screen. While none of them are labeled, they are easy to figure out for the most part. Pressing the fertilizer button causes fertilizer to immediately fall, same with the water button. The sun intensity and sun position potentiometers both have immediate effects on the sun. The plant tilt is the least obvious of any of the controls, as the effect is truly only visible upon completion of the plant. In order to further improve usability, it would be beneficial to label these going forward.
Overall, our game is fairly usable in terms of its current setup. Equally, it is very accessible to most people as it comprises primarily two buttons, three potentiometers, and a VGA screen. This means that many people could download this code and fairly easily acquire these parts (for relatively cheap for most of them) and play our game. No soldering required.
Conclusion
Our project changed fairly drastically over the course of our project. This was due to many issues including resource constraints, stylistic choices, and lack of initial knowledge about the proposed ideas. Some ideas, despite not being included in the initial specs, we brainstormed and worked towards during the process, before realizing this would ultimately not work. The main changes throughout the process were the tree design, the effects of the parameters, and the physical controller.
Despite the drastic changes in our fractal generation, it allowed us to brainstorm a unique implementation of a fractal design. Once we realized that fractal generation could be represented recursively, we used our prior knowledge of data structures and mathematical principles to alter our animation as per our specifications. We are happy with this resulting change as it creates a tree which is aesthetically pleasing and completely different from run to run of the program.
Parameter
Expected Specification
Actual Specification
Sunlight Intensity
(1) Increase feature frequency (2) Contribute to net growth direction
Contribute to net growth direction
Sunlight Position
(1) Contribute to net growth direction
Contribute to net growth direction
Wind Direction
(1) Decrease feature frequency (2) Contribute to net growth direction
NOT IMPLEMENTED
Wind Intensity
(1) Contribute to net growth direction
NOT IMPLEMENTED
Plant Tilt
(1) Contribute to net growth direction
Contribute to net growth direction
Fertilizer
(1) Increase feature frequency (2) Impact feature morphology
Table 1. Changes of parameters and effects between initial plan and actualized results.
Many of our parameters were implemented quite differently than initially expected. The full list can be concisely viewed in Table 1 above. One major change was the sunlight, water, and fertilizer affecting feature frequency. Since our specs were drafted before we began playing around with the tree system and appearance, this initially seemed like it would be decently easy and interesting. When a plant is healthy (with enough sunlight, water, and nutrients), it generally grows large and bushier. This was the intuition behind the feature frequency aspect. However, once we started attempting to create the tree, the system we were using changed and the node system, due to its recursive nature, did not lend itself to easily implementing this.
Fertilizer, instead of affecting the appearance of the features, affects the growth rate of the features. When we began drawing the tree, we realized that our initial method of having layers of tree appear all at once was both jarring (interrupting the calming atmosphere) and far too quick. This meant that the game was over too quickly with little effect from the user's choices. Therefore, we moved towards the size of the tree increasing at a set rate. From here it seemed most reasonable to have the fertilizer affect the rate of growth.
The water was initially going to affect the stiffness of the plant. Once again, this was changed due to how we designed the tree. The tree is composed of straight lines. This meant that stiffness being affected by the water required completely changing the design of the tree. We therefore moved away from this idea, and focused on changing the shape of the plant in other ways. Therefore, as the plant is growing, it now affects the maximum height of each individual branch. This still gives the user the ability to change the resulting tree through the amount of water and allows more variety in each of the branches and overall trees.
The plant's angular orientation went through many iterations. Our initial specs simply described it as a component of the plant's growth direction. However, we thought it would be interesting if the tilt parameter rotated the plant about its stem. The resulting tree would move to its new location and then new branches of the tree would grow towards the new relative growth direction ie. the plant still grows towards the sun even when the whole tree is moved. To achieve this, we would need to recursively parse out the tree and rotate the coordinates of each node about the stem's base. To this end, we created a rotation matrix with an angle dependent on the change in the plant tilt parameter. This calculated the new coordinates and angle of every single branch on the whole tree. Unfortunately, despite the functions working properly in small-batch testing, this method took up too much memory. Half of our RAM was already dedicated to the VGA protocol, so could not find a way to fix this problem. The design choice was dropped and replaced with the initial idea for the plant's growth direction.
Plant tilt now has an identical effect to sun, but without a corresponding graphic. What makes it interesting is that it is diametrically opposed to the directional component of the sun based on the sun intensity parameter. Basically, there is an angular component corresponding to both the sun position and the tilt parameter, and the resulting direction from these two parameters is the weighted sum of radian angles. When sun intensity is high, the sun direction is weighted more heavily. Otherwise, the plant tilt is weighted more heavily. This can be seen in the limit tests where plants will grow mostly toward the sun when intensity is maximized. And off to another direction determined by tilt when the sun intensity is minimized.
Wind was dropped primarily for the lack of ADC channels on the Pico. This would require two additional channels and, given we already used three, this would not be possible. Therefore we decided to not to waste time on this and dropped the idea entirely.
Finally, our physical controller was another part to changed drastically. We originally considered using a game controller to control each of the parameters. This, however, proved to be more expensive than initially expected so we dropped the idea. The issue we had was that the slider potentiometers were rated at 110kΩ instead of the needed 10kΩ. We decided that building the passive circuit was not worth the time when there were perfectly functional 10kΩ potentiometers available from the last lab.
Next time, many of our efforts will be dedicated to improving the physical controller. The main issue with the buttons was their size. They were so small that holding them down could be painful for the user. In the future, we would exchange this for a different button. The potentiometers were somewhat noisy due to weaker connections on the breadboard. This noise resulted in the sun sometimes changing position or shrinking/growing randomly. To fix this, in the future we would like to solder these and the buttons as well, to a board to have more secure connections and less noise. Additionally, we would like to make this more controller-like with a custom setup of the buttons which includes labels. This would make it a more appealing user interface and improve the usability.
Our project did not include any IP nor did we use any trademarked or patented code. We did not have to sign any non-disclosure agreements or reverse engineer any designs, but the design we did create is not eligible for patenting. Since our objective was primarily aesthetic, we do have intellectual property due to the creative nature of our project, but this project is meant to be accessible which places our project under Creative Commons.
Overall, we were quite happy with the way our program turned out. While it was not precisely what we originally planned, the setbacks and changes did not affect the overall turnout. It is visibly simple, easy to use, and aesthetically pleasing. This makes the game fun to play, meeting our meditative purpose. While there are a few places it could be improved, we are proud of our game and our work. We also had a great time along the way with making design decisions and building an entire system from the ground up.
Appendix
A. Permissions
The group approves this report for inclusion on the course website.
The group approves the video for inclusion on the YouTube channel.
Designed L-System and generic tree structure animation in Python
Refactored the generic tree structure in C
Fiona Rae
Generated animations for fertilizer and water
Implemented "growth" animation for the tree
Implemented histogram for sunlight, water, and fertilizer levels
Michael Yancey
Made the animations for the sun
Circuitry and DMA channel handling
Adjusted the plant's growth behavior through the adjustment of weighted DMA parameters
D. Code
/**
* Base Code (animation.c) Author: Hunter Adams (vha3@cornell.edu)
*
*
* HARDWARE CONNECTIONS
* - GPIO 16 ---> VGA Hsync
* - GPIO 17 ---> VGA Vsync
* - GPIO 18 ---> 470 ohm resistor ---> VGA Green
* - GPIO 19 ---> 330 ohm resistor ---> VGA Green
* - GPIO 20 ---> 330 ohm resistor ---> VGA Blue
* - GPIO 21 ---> 330 ohm resistor ---> VGA Red
* - RP2040 GND ---> VGA GND
*
* RESOURCES USED
* - PIO state machines 0, 1, and 2 on PIO instance 0
* - DMA channels (2, by claim mechanism)
* - 153.6 kBytes of RAM (for pixel color data)
*
* Authors: Asma Ansari (ara89), Fiona Rae (fmr35), Emmy Yancey (mdy9)
*
*/
// Include the VGA grahics library
#include "vga16_graphics.h"
// Include standard libraries
#include
#include
#include
#include
// Include Pico libraries
#include "pico/stdlib.h"
#include "pico/divider.h"
#include "pico/multicore.h"
// Include hardware libraries
#include "hardware/pio.h"
#include "hardware/dma.h"
#include "hardware/clocks.h"
#include "hardware/pll.h"
// Include protothreads
#include "pt_cornell_rp2040_v1_3.h"
#include
// Include ADC library
#include "hardware/adc.h"
// === the fixed point macros ========================================
typedef signed int fix15 ;
#define multfix15(a,b) ((fix15)((((signed long long)(a))*((signed long
long)(b)))>>15))
#define float2fix15(a) ((fix15)((a)*32768.0)) // 2^15
#define fix2float15(a) ((float)(a)/32768.0)
#define absfix15(a) abs(a)
#define int2fix15(a) ((fix15)(a << 15))
#define fix2int15(a) ((int)(a >> 15))
#define char2fix15(a) (fix15)(((fix15)(a)) << 15)
#define divfix(a,b) (fix15)(div_s64s64( (((signed long long)(a)) << 15), ((signed long
long)(b))))
// uS per frame
#define FRAME_RATE 33000
// Pico LED
#define LED_PIN 25
// Water Variables
#define W_GPIO 13 // water signal gpio pin
static char STATE_W = 0; // Toggles the water state
static char WATER = 0; // Water State
// Fertilizer Variables
#define F_GPIO 11 //fert signal
static char STATE_F = 0; // Toggles the Fert state
static char FERT = 0; // Fert state
// Sun Variables
#define S_GPIO 28 //Sun intensity GPIO pin
#define S_Dir_GPIO 26 //Sun direction GPIO pin
// Sun intensity
static int Intensity_SUN = 10; // ADC-read value of the sun's intensity
static fix15 sunPosWeight = 0;
// raw ADC value read from the "sun position" potentiometer
static int Dir_SUN = 0;
//set initial VGA coordinates of the sun at the middle of the screen. The y value here
is constant
static int sunX = 320;
static int sunY = 50;
// Plant Tilt Variables
#define P_GPIO 27
static int plant_angle = 90; //plant angle adc value
int plant_angle_degrees = -90; // plant angle in integer degrees
// Rain
#define ay 0.7 // acceleration rate of rain
int waterSize = 0; // size of the water rain object array
int maxWater = 100; // maximum number of water rain objects
int maxY = 482; // Lowest y position for rain objects
int sun_radius = 10; //radius of the sun graphic in VGA coordinates
int previous_Intensity_SUN = 0; //value of Intensity_SUN on the last frame
//sun position parameters
int previous_Dir_SUN = 0 ; // previous adc value of the sun's position
int previous_sunX = 320; //previous x location of the sun
//Histogram Parameters
static int maxSun = 100; // maximum value of currSun
static int currSun = 50; //current sun level [0,99]
static int currWater = 50; //current water level [0,99]
static int currFert = 0; //current fertilizer level [0,99]
static int maxYHist = 400; //Adjust this
static int waterXHist = 555; //x position of the water histogram bar
static int sunXHist = 610; //x position of the sun histogram bar
static int fertXHist = 500; //x position of the fertilizer histogram bar
static int width = 20; //histogram bar width
static int count = 0; //modded value for frame calculations
// ========================================
// TREE-RELATED CODE
// ========================================
// Maximum number of children per node
#define MAX_CHILDREN 4
// Forward declaration
typedef struct TreeNode TreeNode;
// Tree node structure
struct TreeNode {
fix15 length; //length of the current tree node
fix15 angle; //radian angluar direction of the current tree node with respect to VGA
coordinates
fix15 start_x; //starting x position of the node
fix15 start_y; //starting y position of the node
int num_children; //number of child nodes the current node has
char is_leaf; //if 0, this node is a branch, if 1, this node is a leaf
TreeNode* children[MAX_CHILDREN]; //the array of child nodes the current tree has
};
// ==========================================================
// AI - MEMORY POOL SETUP
// ==========================================================
// Define size of the tree node pool
#define MAX_TREE_NODES 1750 // Adjust based on your memory constraints and needs
// Global pool of tree nodes
static TreeNode tree_node_pool[MAX_TREE_NODES];
// Tracks whether each node in the pool is used (1) or free (0)
static char tree_node_used[MAX_TREE_NODES];
// Number of nodes currently allocated from the pool
static int tree_nodes_allocated = 0;
// ==========================================================
// AI - MEMORY POOL SETUP
// ==========================================================
// Global tree structs
TreeNode* currentTree;
// ==========================================================
// AI - MEMORY POOL HELPER FUNCTIONS
// ==========================================================
// Initialize the tree node pool
void init_tree_node_pool() {
// Mark all nodes as free
for (int i = 0; i < MAX_TREE_NODES; i++) {
tree_node_used[i] = 0;
}
// initialize allocated nodes to zero
tree_nodes_allocated = 0;
}
// Get a free node from the pool
TreeNode* get_free_node() {
// Find the first free node
for (int i = 0; i < MAX_TREE_NODES; i++) {
// when the first unmarked node is found
if (!tree_node_used[i]) {
// Mark as used and initialize all of its children to NULL
tree_node_used[i] = 1;
for (int j = 0; j < MAX_CHILDREN; j++) {
tree_node_pool[i].children[j] = NULL;
}
//initialize the node's children to zero
tree_node_pool[i].num_children = 0;
//increment the number of trees allocated
tree_nodes_allocated++;
// return the first free node
return &tree_node_pool[i];
}
}
// No free nodes available
return NULL;
}
// Return a node to the pool
void release_node(TreeNode* node) {
//safe return in case of null pointer
if (node == NULL) return;
// find index of the current node
int index = node - tree_node_pool;
// if the index is greater or equal to zero and is less than the maximum
if (index >= 0 && index < MAX_TREE_NODES) {
//mark tree node as unused
tree_node_used[index] = 0;
//decrement the number of allocated tree nodes
tree_nodes_allocated--;
}
}
// Modified create_node function that uses the pool
TreeNode* create_node(fix15 length, fix15 angle, fix15 start_x, fix15 start_y, char
is_leaf) {
TreeNode* node = get_free_node();
if (node == NULL) {
// Handle out of memory - could return a minimal node or NULL
return NULL;
}
// initialize node parameters
node->length = length; //length of the current tree node
node->angle = angle; //radian angluar direction of the current tree node with
respect to VGA coordinates
node->start_x = start_x; //starting x position of the node
node->start_y = start_y; //starting y position of the node
node->num_children = 0; //number of child nodes the current node has
node->is_leaf = is_leaf; //whether the current node is a leaf or a branch
return node;
}
// Modified free_tree function to release nodes back to the pool
void free_tree(TreeNode* node) {
if (node == NULL) return;
// Free all children first
for (int i = 0; i < node->num_children; i++) {
if (node->children[i] != NULL) {
free_tree(node->children[i]);
}
}
// Return this node to the pool
release_node(node);
}
// Check how many nodes are currently allocated
int get_allocated_node_count() {
return tree_nodes_allocated;
}
// ==========================================================
// AI - MEMORY POOL HELPER FUNCTIONS
// ==========================================================
// Function to add a child to a node
void add_child(TreeNode* parent, TreeNode* child) {
if (parent->num_children < MAX_CHILDREN) {
parent->children[parent->num_children] = child;
parent->num_children++;
}
}
// Generate a tree with random branching
TreeNode* generate_tree(int depth, fix15 branch_length, fix15 leaf_length,
fix15 branch_scale, fix15 leaf_scale) {
if (depth == 0) {
return create_node(leaf_length, int2fix15(0), int2fix15(0), int2fix15(0), 1);
}
// Create root branch
TreeNode* root = create_node(branch_length, int2fix15(0), int2fix15(0), int2fix15(0),
0);
// Randomly determine number of branches (2-4)
int num_branches = (rand() % 3) + 2;
// Generate child branches with random angles
for (int i = 0; i < num_branches; i++) {
// Random angle between -60 and 60 degrees
fix15 branch_angle = int2fix15((rand() % 121) - 60);
// Random scaling factor between 0.85 and 0.95
fix15 random_scale = float2fix15(0.85 + ((float)(rand() % 10) / 100.0));
// Some branches might be shorter
fix15 length_modifier = float2fix15(0.8 + ((float)(rand() % 20) / 100.0));
TreeNode* child = generate_tree(
depth - 1,
multfix15(multfix15(branch_length, branch_scale), length_modifier),
multfix15(multfix15(leaf_length, leaf_scale), length_modifier),
multfix15(branch_scale, random_scale),
multfix15(leaf_scale, random_scale));
child->angle = branch_angle;
add_child(root, child);
}
return root;
}
// Function to draw a tree using VGA library
void draw_tree(TreeNode* node) {
if (node == NULL) return;
float angle_rad = fix2float15(node->angle);
fix15 end_x = node->start_x + multfix15(node->length, float2fix15(cos(angle_rad)));
fix15 end_y = node->start_y + multfix15(node->length, float2fix15(sin(angle_rad)));
// Set color based on node type
char color = node->is_leaf ? PINK : DARK_ORANGE;
// Draw the current segment
drawLine(fix2int15(node->start_x), fix2int15(node->start_y),
fix2int15(end_x), fix2int15(end_y), color);
// Update the children’s start positions before recursion
for (int i = 0; i < node->num_children; i++) {
if (node->children[i] != NULL) {
node->children[i]->start_x = end_x;
node->children[i]->start_y = end_y;
draw_tree(node->children[i]);
}
}
}
//pi in fix
#define PI float2fix15(3.14159265359)
//conversion factor from fix degrees to fix radians
#define degree2radian multfix15(divfix(int2fix15(1), int2fix15(180)), PI)
//fix macros for calculation
#define one int2fix15(1)
#define one_percent divfix(int2fix15(1), int2fix15(100))
//term weights: they sum to one
#define balanced_weight divfix(int2fix15(2), int2fix15(10))
#define random_weight divfix(int2fix15(8), int2fix15(10))
// the angle given from the tilt converted to fix radians
fix15 plant_angle_fix_rad;
//updates the given tree node
void update_tree(TreeNode* node, int n) {
//safety return given a null pointer
if (node == NULL) return;
//generate an angular change between +30 degrees and -30 degrees. then convert to
radians
fix15 random_component = multfix15(int2fix15((rand() %121) - 60), degree2radian);
//add this component to the angle of the previous branch for the random angle
fix15 r = node->angle + random_component;
// balancing term between sunlight and tilt
fix15 p = multfix15(int2fix15(currSun), one_percent);
// calculate the angle given from the tilt converted to fix radians
plant_angle_fix_rad = multfix15(int2fix15(plant_angle_degrees), degree2radian);
// weighted terms for te net growth direction
fix15 sunAngle_term = multfix15(balanced_weight, multfix15(p, sunPosWeight)); //
coupled term for the sun componenet
fix15 random_term = multfix15(r, random_weight); //rantomized vector term
fix15 balanced_tilt = multfix15(multfix15(balanced_weight, (one-p)),
plant_angle_fix_rad); // coupled term for tilt
// sum to give the net growth direction for the next node
fix15 angle = sunAngle_term + random_term + balanced_tilt;
//when max recursion depth is reached, find the endpoints of the current branch
// and create a leaf starting from that poistion
if (n == 8){
fix15 end_x = node->start_x + multfix15(node->length,
float2fix15(cos(fix2float15(node->angle))));
fix15 end_y = node->start_y + multfix15(node->length,
float2fix15(sin(fix2float15(node->angle))));
add_child(node, create_node(int2fix15(5), angle, end_x, end_y, 1));
return;
}
//When the current node is a branch that has not reached its maximum length and has
no childred, increase its length by 5 pixels
if((fix2int15(node->length) < (140.0/n*0.01*(float)currWater)) && (node->num_children
== 0) && (node->is_leaf == 0)){
node->length += int2fix15(5);
}
//when the current node is a branch and has a number on children less than the
maximum
else if(node->num_children <= MAX_CHILDREN && (node->is_leaf == 0) ){
//calculate the sun balancing term
fix15 p = multfix15(int2fix15(currSun), one_percent);
//calculate the random angle component
fix15 r = float2fix15(((rand() % 121) - 60)*3.1415/180.0);
//char determining whether the next node is a leaf
char leaf;
// if recursion depth is greater than 2, flip a coin to determine whether it's a
leaf
if (n > 2) leaf = (rand() % 2);
// below recursion depth 2, the node is always a branch
else leaf = 0;
// calculate the end position of the current node based on the angle parameter
fix15 end_x = node->start_x + multfix15(node->length,
float2fix15(cos(fix2float15(node->angle))));
fix15 end_y = node->start_y + multfix15(node->length,
float2fix15(sin(fix2float15(node->angle))));
// add the child node based on the previously calculated angle,
// the end coordinates of the previous node, and the leaf char
add_child(node, create_node(int2fix15(5), angle, end_x, end_y, leaf));
}
// Recursively update all children
for (int i = 0; i < node->num_children; i++) {
if (node->children[i] != NULL) {
update_tree(node->children[i], n+1);
}
}
}
// Initialize all buttons (Water = GPIO 22, Fertilizer = GPIO 23)
// Call in main()
void button_setup(){
//fert button
gpio_init(F_GPIO);
gpio_set_dir(F_GPIO, GPIO_IN) ;
gpio_pull_down(F_GPIO);
//water button
gpio_init(W_GPIO);
gpio_set_dir(W_GPIO, GPIO_IN) ;
gpio_pull_down(W_GPIO);
}
// ==================================================
// === Button State Helper Functions========================
// ==================================================
// Scan the Water Button and Set Global Water Flag to 1 if pressed or 0 if unpressed
void button_scan_water(){
int i = gpio_get(W_GPIO);
if (STATE_W == 0 && i == 1){
STATE_W = 1;
WATER = 1;
gpio_put(LED_PIN, 1);
}
else if (STATE_W == 1 && i == 0){
STATE_W = 0;
WATER = 0;
gpio_put(LED_PIN, 0);
}
}
// Scan the Fertilizer Button and Set Global Fertilizer Flag to 1 if pressed or 0 if
unpressed
void button_scan_fert(){
char i = gpio_get(F_GPIO);
if (STATE_F == 0 && i == 1){
STATE_F = 1;
FERT = 1;
gpio_put(LED_PIN, 1);
}
else if (STATE_F == 1 && i == 0){
STATE_F = 0;
FERT = 0;
gpio_put(LED_PIN, 0);
}
}
// ==================================================
// === Digital Button reader thread
// ==================================================
static PT_THREAD (button_scan(struct pt *pt))
{
PT_BEGIN(pt);
// read the values of water and fert every frame
while (1){
button_scan_water();
button_scan_fert();
PT_YIELD_usec(33000);
}
PT_END(pt);
}
// ==================================================
// === ADC initialization============================
// ==================================================
void ADC_setup(){
adc_init();
// Make sure GPIO is high-impedance, no pullups etc
adc_gpio_init(S_GPIO);
adc_gpio_init(S_Dir_GPIO);
adc_gpio_init(P_GPIO);
}
// ==================================================
// === Value reading helpers ========================
// ==================================================
//reads the raw values of the ADC channels into global space
void read_raw(){
//rea sun direction
adc_select_input(0);
Dir_SUN = 4095 - adc_read();
// read plant angle
adc_select_input(1);
plant_angle = 4095 - adc_read();
// read sun intensity
adc_select_input(2);
Intensity_SUN = 4095 - adc_read();
}
// ==================================================
// === ADC reader thread
// ==================================================
static PT_THREAD (adcReader(struct pt *pt)){
PT_BEGIN(pt);
while(1){
//read all raw ADC values to global space
read_raw();
PT_YIELD_usec(33333); // wait for a single frame
}
PT_END(pt);
}
// ==================================================
// === RAIN STRUCTURE DECLARATIONS ==================
// ==================================================
// Animated struct for the Fertilizer and rain animations
// NOTE: BOTH VISUAL RAIN AND FERTILIZER ARE
struct Rain{
float x, y, vy; // x-position, y-position, y-velocity
};
//Statically declared array of Rain objects representing water droplets
struct Rain water[100];
//Statically declared array of Rain objects representing water droplets
#define fert_max 50 //maximum amount of fertilizer objects
struct Rain fert[fert_max];
// ==================================================
// === RAIN-BASED HELPERS============================
// ==================================================
//take pointers to the attributes of a Rain struct and send it to the top of the
screen
//with a randomized x position and a constant y velocity downward
void spawn_rain(float* x, float* y, float* vy){
*x = (rand() % 640);
*y = 0;
*vy = 5;
}
//take pointers to the attributes of a Rain struct and send it to the top of the
screen
//with a randomized x position in [200,440] and a
//randomized y velocity downward in (float) [0,1]
void spawn_fert(float* x, float* y, float* vy){
*x = 200 + (rand() % 240);
*y = 0;
*vy = (float)rand() / (float)RAND_MAX;
}
//Draws a black rectangle starting from VGA coordinate (x,y). Meant to cover Rain
//objects between frames
void erase_rain(float x, float y){
drawRect((int)x, (int)y, 2, 2, BLACK);
}
//Draws a black rectangle starting from VGA coordinate (x,y). Meant to cover Rain
//objects between frames
void erase_fert(float x, float y){
drawRect((int)x, (int)y, 2, 2, BLACK);
}
// ==================================================
// === RAIN WATER ANIMATION THREAD ==================
// ==================================================
static PT_THREAD (update_rain(struct pt *pt)){
PT_BEGIN(pt);
//recursion depth
int n = 0;
while(1){
//When the length of the water array is less than the maximum and the Water state
is on
//erase the rain's previous position, and spawn it at the top
//increment the maximum size of the water array
if(waterSize < maxWater && WATER == 1){
erase_rain(water[waterSize].x, water[waterSize].y);
spawn_rain(&water[waterSize].x, &water[waterSize].y, &water[waterSize].vy);
waterSize = waterSize + 1;
}
//iterate over the water array
for(int i = 0; i < maxWater; i++){
//if the current rain object is below the lowest y position
if(water[i].y >= maxY){
//when the water state is on, respawn the current Rain object at the top of the
sceen
if(WATER == 1){
erase_rain(water[i].x, water[i].y);
spawn_rain(&water[i].x, &water[i].y, &water[i].vy);
}
//otherwise erase the current rain object and set the rain array size to zero
else{
erase_rain(water[i].x, water[i].y);
waterSize = 0;
}
}
//when the current rain object's y position is less than or equal to maximum,
//erase the previous position, set the new y position based on the y velocity,
//and draw the rain at it's new position
if (water[i].y <= maxY){
erase_rain(water[i].x, water[i].y);
water[i].y = water[i].y + water[i].vy;
drawRect(water[i].x, water[i].y, 2, 2, BLUE);
}
}
PT_YIELD_usec(33333) // wait for a single frame
}
PT_END(pt);
}
// ==================================================
// === RAIN FERTILIZER ANIMATION THREAD =============
// ==================================================
static PT_THREAD (update_fert(struct pt *pt)){
PT_BEGIN(pt);
while(1){
//iterate over the fertilizer rain object array
for(int i = 0; i < fert_max; i++){
//if the current Rain object is below the lowest y position
if(fert[i].y >= maxY){
//when the fert state is on, respawn the current Rain object at the top of the
sceen
if(FERT == 1){
erase_fert(fert[i].x, fert[i].y);
spawn_fert(&fert[i].x, &fert[i].y, &fert[i].vy);
}
//otherwise erase the current rain object and set the rain array size to zero
else{
erase_fert(fert[i].x, fert[i].y);
}
}
//when the current Rain object's y position is less than or equal to maximum,
//erase the previous position, set the new y velocity based on the constant
acceleration, ay,
//set the new y position based on the y velocity, and draw the rain at it's new
position
if (fert[i].y <= maxY){
erase_fert(fert[i].x, fert[i].y);
fert[i].vy = fert[i].vy + ay;
fert[i].y = fert[i].y + fert[i].vy;
drawRect(fert[i].x, fert[i].y, 2, 2, WHITE);
}
}
PT_YIELD_usec(33333) // wait for a single frame
}
PT_END(pt);
}
// ==================================================
// === ANIMATION HELPERS ============================
// ==================================================
//plant angle parameters
fix15 plant_angle_fix;
int previous_plant_angle_degrees = -90; // previous angle in degrees
int previous_plant_angle = 0; // raw adc value of plant angle last frame
//Constants for value mapping
#define angle_scaling divfix(int2fix15(90), int2fix15(4095))
#define angle_offset -135
//Thresholds to passively filter the analog signals
#define DIR_SUN_THRESHOLD 100
#define INTENSITY_SUN_THRESHOLD 70
#define INTENSITY_TILT_THRESHOLD 30
/*
INPUT PARAMETERS:
Dir_SUN: ADC read value of the sun's x-position
Intensity_SUN: ADC read value of the instensity value
plant_angle: ADC read value of the tilt parameter
OUTPUT MODIFICATIONS:
sun_radius: current value of the sun's intensity
sun_x: current value of the sun's x-position
SUN POSITION:
Take the ADC value of the sun position and map it to the proper locations on the VGA
screen
This specifically modifies the center of the sun. The center should be able to be
placed on all x positions of the
ACD values are in [0,4095] and they must be mapped to [0,639]: conversion rate of 5/32
SUN INTENSITY:
Take the ADC value of the sun intensity and map it to the the sun's minimum and
maximum diameters.
This modifies the size of the sun using the fill_circle() method in the VGA driver.
ACD values are in [0,4095] and they must be mapped to [0,47]: conversion rate of 3/256
This also updates the animation of the
PLANT ANGLE:
*/
void update_ADC_parameters(){
//when a change in sun position exceeds the threshold
if (abs(Dir_SUN - previous_Dir_SUN) > DIR_SUN_THRESHOLD){
//push old values
previous_Dir_SUN = Dir_SUN;
previous_sunX = sunX;
//multiply Dir_SUN right by 5 then BSR by 5
sunX = (5 * Dir_SUN) >> 5;
//calculate an Approximate angle pointing toward the sun
//baased on the sun's current x poistion
sunPosWeight = float2fix15((float)(sunX - 320)*0.00245) - float2fix15(1.5708);
}
//when a change in sun intensity exceeds the threshold
if (abs(Intensity_SUN - previous_Intensity_SUN) > INTENSITY_SUN_THRESHOLD){
//push old values
previous_Intensity_SUN = Intensity_SUN;
//multiply Intensity_SUN by 3 then BSR by 8 (gives sun radius)
sun_radius = (3 * Intensity_SUN) >> 8;
}
// When a change in plant angle exceeds the threshold
if (abs(plant_angle - previous_plant_angle) > INTENSITY_TILT_THRESHOLD){
//push raw values
previous_plant_angle = plant_angle;
//push degree values
previous_plant_angle_degrees = plant_angle_degrees;
//save the fix of the current adc-read value
plant_angle_fix = int2fix15(plant_angle);
//convert the angle to degrees
plant_angle_degrees = fix2int15(multfix15(angle_scaling, plant_angle_fix)) +
angle_offset;
}
}
//update histogram parameters
void updateHistogram(){
// when the sun is under the lower static threshold and it's every 9th frame,
decrement currSun by 1 until zero
if(Intensity_SUN < 1750 && count%9 == 0){
if(currSun > 0){
currSun = currSun - 1;
}
}
// when the sun is over the upper static threshold and it's every 7th frame,
increment currSun until 99
else if(Intensity_SUN > 2200 && count%7 == 0){
if(currSun < 100){
currSun = currSun + 1;
}
}
//NOTE: between the static thresholds, currSun does not change
// Interpreting water values
//When the water button is pressed, below 100, and its every other frame, increment
water
if(WATER == 1 && currWater < 100 && count%2 == 0){
currWater = currWater + 1;
}
//When the water button is unpressed, above 0, and its every 9th frame, decrement
water
else if (WATER == 0 && currWater > 0 && count%9 == 0){
currWater = currWater - 1;
}
// When the FERT button is pressed and below 100, increment currFert every frame
if(FERT == 1 && currFert < 100){
currFert = currFert + 1;
}
//When the FERT button is unpressed, above 0, and its every 9th frame, decrement
currFert
else if (FERT == 0 && currFert > 0 && count%9 == 0){
currFert = currFert - 1;
}
//increment count
count++;
}
// ==================================================
// === HISTOGRAM ANIMATION THREAD ===================
// ==================================================
static PT_THREAD (protothread_hist(struct pt *pt))
{
// Mark beginning of thread
PT_BEGIN(pt);
while(1){
//update histogram parameters
updateHistogram();
// set the text size and color
setTextSize(1);
setTextColor(WHITE);
//write the histogram parameter names
setCursor(waterXHist, maxYHist - 20);
writeString("Water");
setCursor(sunXHist, maxYHist - 20);
writeString("Sun");
setCursor(fertXHist-25, maxYHist - 20);
writeString("Fertilizer");
// erase the histogram area
fillRect(waterXHist, maxYHist, width, 100, BLACK);
fillRect(sunXHist, maxYHist, width, 100, BLACK);
fillRect(fertXHist, maxYHist, width, 100, BLACK);
//draw new halues of the histogram
drawRect(waterXHist, maxYHist+(100-currWater), width, 100, GREEN);
drawRect(sunXHist, maxYHist+(100-currSun), width, 100, GREEN);
drawRect(fertXHist, maxYHist+(100-currFert), width, 100, GREEN);
//wait a frame
PT_YIELD_usec(FRAME_RATE) ;
}
PT_END(pt);
}
// ==================================================
// === GENERAL ANIMATION THREAD ==================
// ==================================================
// Animation on core 0
static PT_THREAD (protothread_anim(struct pt *pt))
{
// Mark beginning of thread
PT_BEGIN(pt);
// Variables for maintaining frame rate
static int begin_time ;
static int spare_time ;
static int n = 0;
while(1) {
// Measure time at start of thread
begin_time = time_us_32() ;
// Update animation parameters
update_ADC_parameters();
//updating sun every 15 frames
int sunBuffer = 0;
//when it's time to animate
if (!(sunBuffer%15)){
//erase previous sun position
fillRect(previous_sunX-47, sunY-47, 192, 100, BLACK);
//draw new sun
drawCircle(sunX, sunY, sun_radius, ORANGE);
}
//increment the animation modded value
sunBuffer++;
// delay in accordance with frame rate
spare_time = FRAME_RATE - (time_us_32() - begin_time);
// yield for necessary amount of time
PT_YIELD_usec(spare_time);
}
PT_END(pt);
} // animation thread
//amination rate at zero fertilizer
#define ANIMATION_RATE 150
// CORE 1 - TREE ANIMATION
static PT_THREAD (protothread_anim1(struct pt *pt))
{
// Mark beginning of thread
PT_BEGIN(pt);
//value modded by animation rate - currfert to determine speed of animation
static int i = 0;
//initialize the memory for tree storing
init_tree_node_pool();
//set the first tree node
currentTree = create_node(int2fix15(5), float2fix15(-3.14159/2), int2fix15(320),
int2fix15(480), 0);
while (1) {
//when it's tim to animate (frequency proportional to currfert)
if(i%(ANIMATION_RATE-currFert)==0){
drawRect(180, 240, 300, 240, BLACK);
// Draw the tree (start from middle bottom of the screen, pointing up)
draw_tree(currentTree);
//Decide how the tree will grow
update_tree(currentTree, 1);
}
//increment modded value
i++;
//yield for a frame
PT_YIELD_usec(33333);
}
PT_END(pt);
} // animation thread
// ========================================
// === core 1 main -- started in main below
// ========================================
void core1_main(){
// Add animation thread
pt_add_thread(protothread_anim1);
// Start the scheduler
pt_schedule_start ;
}
// ========================================
// === MAIN ===============================
// ========================================
int main(){
// initialize stio
stdio_init_all() ;
// initialize VGA
initVGA() ;
// Initialize the LED pin
gpio_init(LED_PIN);
// Configure the LED pin as an output
gpio_set_dir(LED_PIN, GPIO_OUT);
// Initialize ADC
ADC_setup();
button_setup();
// start core 1
multicore_reset_core1();
multicore_launch_core1(&core1_main);
// add threads
pt_add_thread(protothread_anim);
pt_add_thread(button_scan);
pt_add_thread(update_rain);
pt_add_thread(update_fert);
pt_add_thread(adcReader);
pt_add_thread(protothread_hist);
// start scheduler
pt_schedule_start ;
}
